MOTCRANE rubber tyred gantry cranes are built for flexible heavy-load handling in industrial yards, steel structure sites, precast yards, equipment manufacturing facilities, shipyards, and containerized equipment handling areas.
The crane travels on rubber tyres without fixed rail tracks, making it suitable for moving large components, machinery, steel structures, modules, energy storage cabinets, containerized units, and heavy cargo between different working areas. Each solution is customized according to the load, span, lifting height, ground condition, steering mode, and operating route.
Depending on the application, single- or double-girder structures can be configured with electric wire rope hoists or hydraulic lifting systems. The longitudinal arrangement and lifting-point positions can also be customized for long or oversized industrial loads.

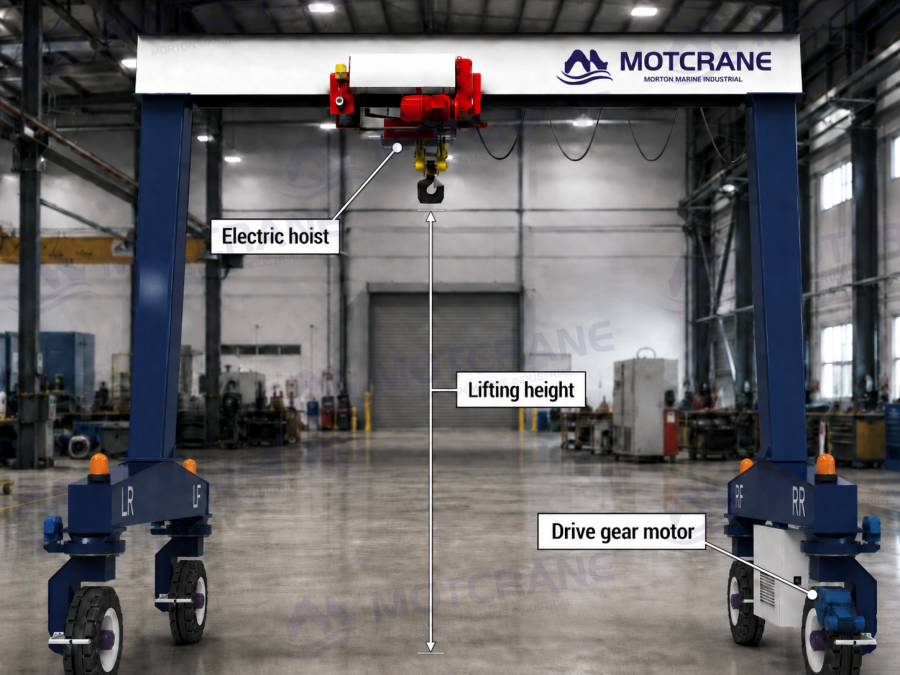

This type uses a single-girder structure with two rigid support legs. Lifting is handled by an electric hoist, while both travel and steering are driven by gear motors.
It is a practical solution for light to medium-duty material handling in standard industrial yards, workshops, and production areas.
This type uses a single-girder structure with two rigid support legs. Hoisting is powered by a hydraulic winch, while travel is driven by hydraulic motors and steering is controlled by hydraulic cylinders.
Compared with the electric type, it is better suited for heavy-load handling, low-speed movement, and applications where stable control is required.

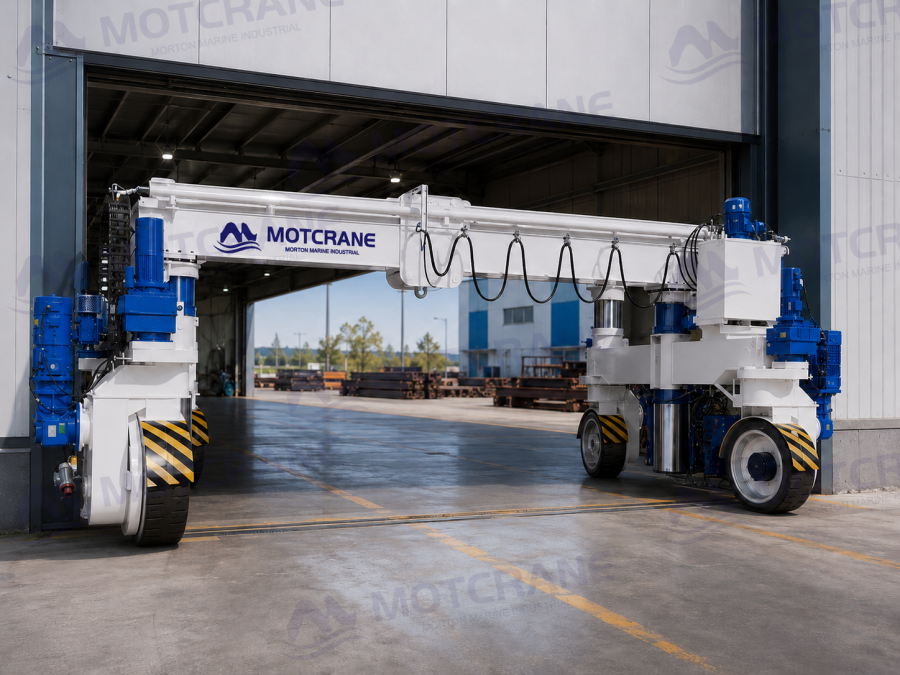

This type is developed from the hydraulic gantry concept, but replaces track-plate travel with a tyre-mounted running system.
It uses a single-girder structure with two rigid support legs, and the height can be adjusted by single-stage or multi-stage hydraulic cylinders to suit different cargo heights, assembly stations, and site clearance requirements.

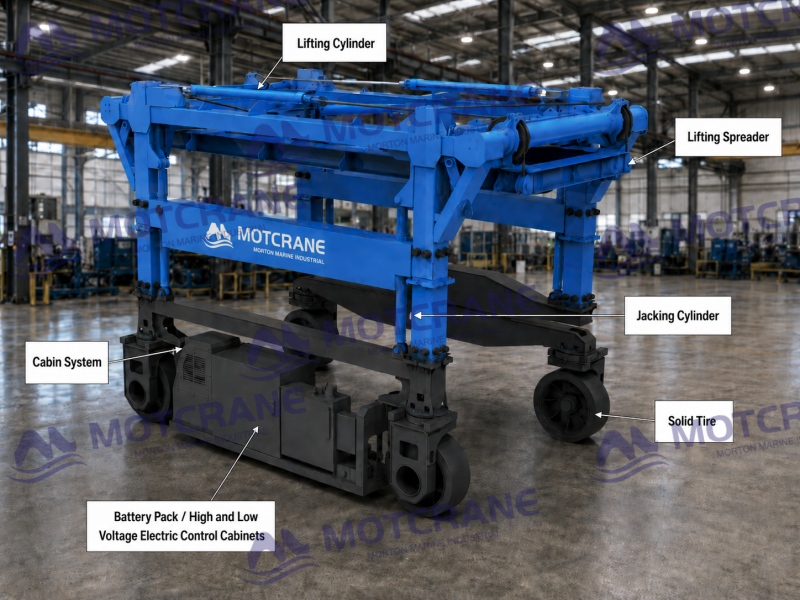

This type is usually designed with a four-leg structure and rigid support legs. It is suitable for long or oversized cargo that requires multiple lifting points, such as long steel structures, precast beams, modules, and large frames.
Depending on the application, the crane can be designed with a fixed height or equipped with hydraulic cylinders for height adjustment.
For long industrial components, the lifting-point spacing and longitudinal structure can be customized to suit the load. If your main application involves frequent pick-and-carry handling of containers or energy storage cabinets using a dedicated four-point lifting attachment, our Straddle Carrier may be a more suitable option.

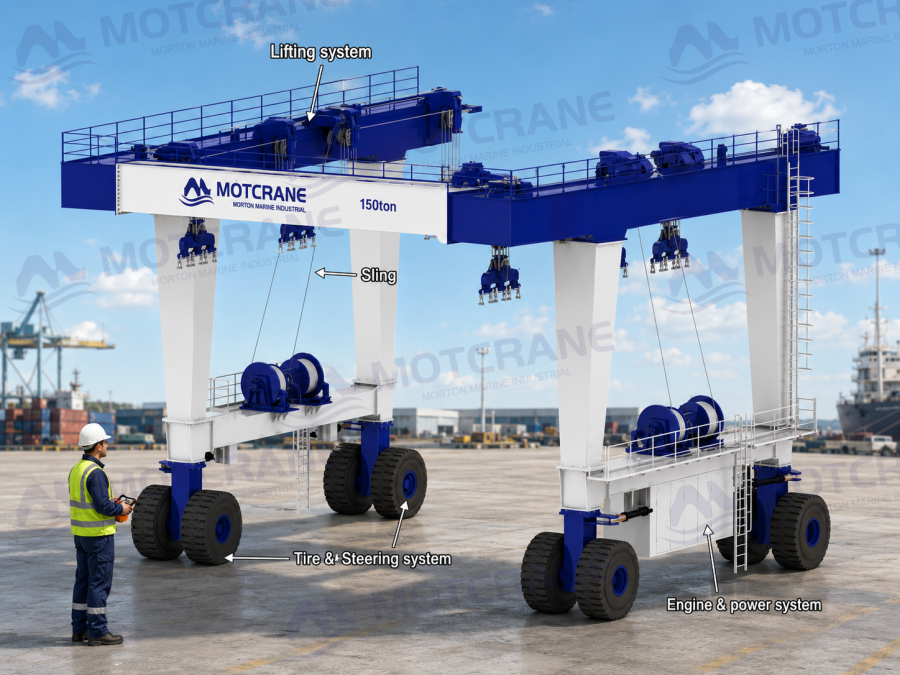

A Boat Travel Lift, also known as a Mobile Boat Hoist, is mainly used for launching, hauling out, and moving yachts, boats, and workboats in marinas, boatyards, and ship repair facilities. It can transfer vessels between the water, maintenance areas, storage yards, and service stations.
Unlike standard industrial rubber tyred gantry cranes, Boat Travel Lifts are designed around boat handling requirements. They usually feature higher gantry clearance, specialized sling systems, multi-point synchronized lifting, and structural designs that help protect the hull during lifting and movement.
|
|
Related Crane Cases
Related blogs
A rubber-tired gantry crane is a mobile gantry lifting device that moves on rubber tires and does not require fixed tracks. It is suitable for industrial yards, steel structure sites, precast component yards, equipment manufacturing facilities, shipyards, energy storage cabinet production sites, and containerized equipment transfer areas.
Compared with rail-mounted gantry cranes, rubber tyred gantry cranes do not require fixed travel rails. However, the ground surface must be checked for wheel loads, bearing capacity, surface evenness, and slope before the equipment is selected.
We will configure a suitable tire-mounted gantry crane solution based on the customer’s site-specific requirements, including lifting capacity, span, lifting height, ground conditions, steering method, travel route, power supply, and actual material handling processes.
Safety functions are specified according to the selected crane configuration. These typically include overload protection, hoisting and travel limits, emergency stop systems, and audible or visual alarms. For applications requiring multiple lifting points or coordinated movement, synchronized control and anti-skew functions can be configured following engineering evaluation.

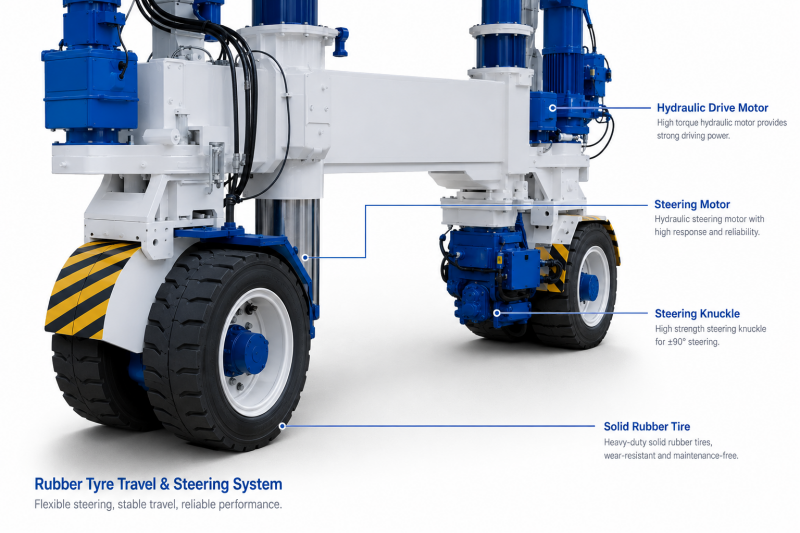

Travel and steering systems can be designed for straight travel, transverse movement, 90° steering, or other customized movement modes, depending on the tyre arrangement, drive system, and site conditions.
The most suitable configuration depends on more than lifting capacity. Before selecting a crane, confirm the maximum suspended load including lifting attachments, load dimensions, center of gravity, required lifting height, and travel distance.
Ground conditions are equally important. Provide information about the operating surface, slope, available turning space, door clearances, and whether the crane must travel while carrying a load.
You should also confirm the preferred power source, steering requirements, operating frequency, and whether independent or synchronized lifting points are needed.
MOTCRANE can use this information to review the crane structure, hoisting arrangement, wheel configuration, power system, and site requirements before preparing a project quotation.
This all-electric rubber tyred gantry crane is a practical choice when the working route is relatively simple and a stable power supply is available on site. It offers straightforward operation, easy maintenance, and lower operating complexity for standard industrial handling tasks.

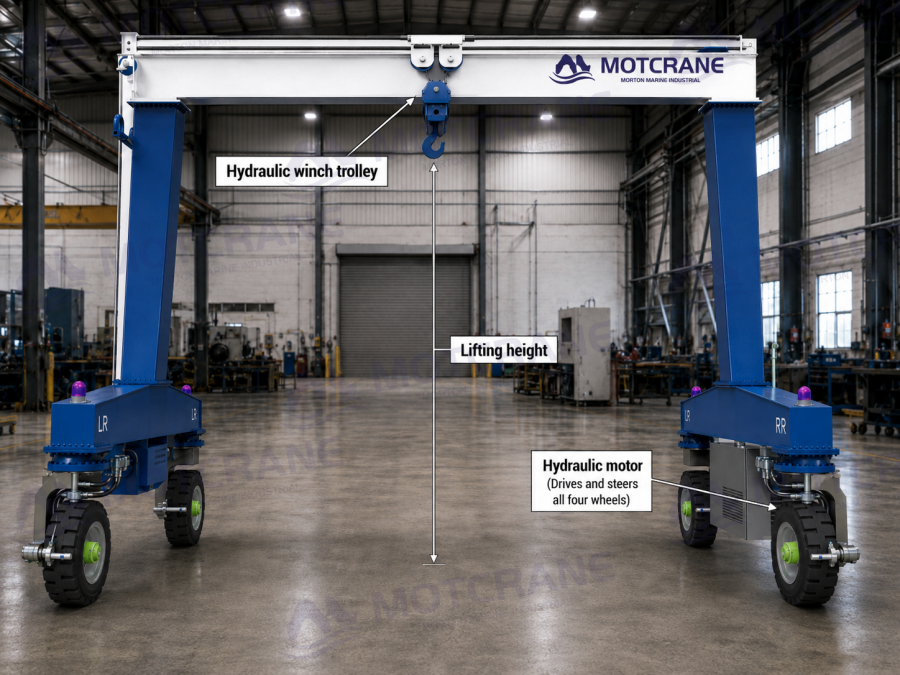

Compared with all-electric solutions, the hydraulic rubber tyred gantry crane is better suited for low-speed, heavy-load applications. It is a suitable option when the cargo is heavy, the ground condition is more complex, or stable control is required during travel and positioning.
This height-adjustable rubber tyred gantry crane is designed for projects where the crane needs to work under different height conditions or move between indoor and outdoor areas. The hydraulic height-adjustment structure allows the crane to adapt to limited clearance areas while still providing flexible tyre-mounted movement on site.

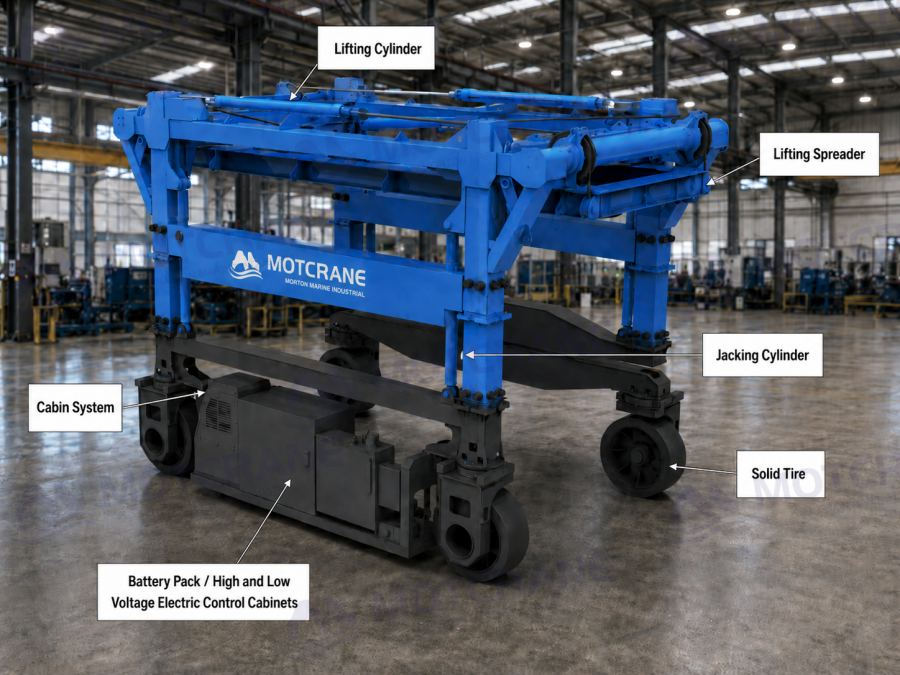

This type normally adopts a four-leg structure and can be configured with multiple lifting points to support long or oversized cargo. It can be designed with a fixed height or equipped with hydraulic cylinders for height adjustment. For long or oversized loads, the lifting-point arrangement should be determined according to the load geometry, center of gravity, and structural requirements. Where multiple hoists are used, load distribution and synchronized lifting control must be evaluated during the design stage.
A Boat Travel Lift, also known as a Mobile Boat Hoist, is designed specifically for vessel handling. Compared with standard industrial rubber tyred gantry cranes, it focuses more on hull clearance, sling arrangement, synchronized lifting, and hull protection during movement. When the main handling object is a boat or yacht rather than industrial components, the Boat Travel Lift / Mobile Boat Hoist solution is the preferred choice.
For a project quotation, please share your load weight and dimensions, lifting height, working route, ground conditions, preferred power source, and any site drawings available.
