A single girder overhead crane uses one main bridge girder to lift and move materials along an overhead runway system. It is widely used in manufacturing workshops, warehouses, assembly areas, and equipment maintenance facilities.
MOTCRANE offers three configurations: standard, box-girder, and European-style designs. The right solution depends on the required lifting capacity, working span, available hook height, operating frequency, and workshop conditions.
| Fabricated I-section main girder |

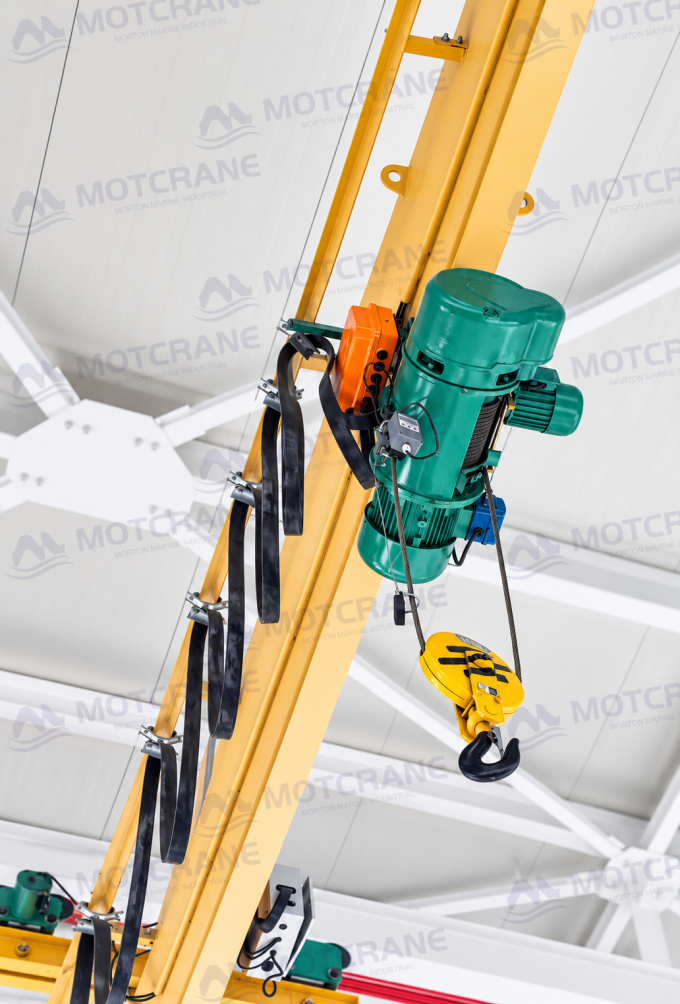

| CD-type electric wire rope hoist |
| Conventional hoist trolley arrangement |
| Standard fixed-speed crane travel |
| Crane duty class: A3 |
| Cost-conscious equipment configuration |
| Suitable for routine workshop lifting |
| European-style welded box girder |
| CD-type electric wire rope hoist |
| Conventional hoisting system |
| Fixed-speed or VFD travel options |
| Crane duty class: A3 |
| Box-girder structure with a conventional hoist |
| Suitable for specified structural requirements |
| European-style welded box girder |

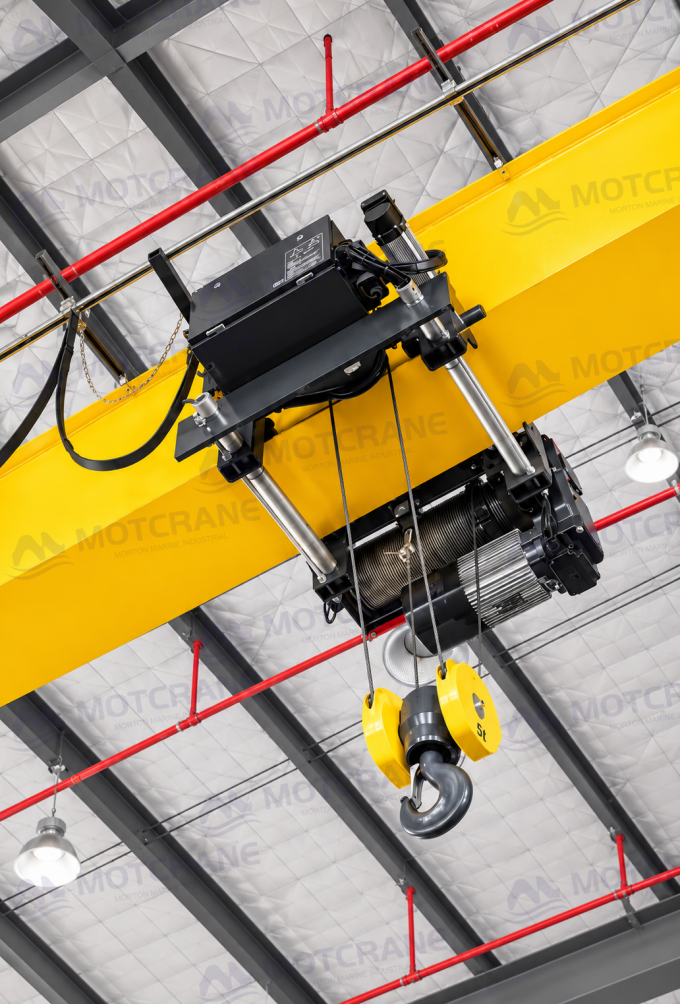

| European-style electric wire rope hoist |
| Variable-frequency crane travel |
| Crane duty class: A4/A5 |
| Compact hoist arrangement available |
| Configurable travel drives and controls |
| Cost-effective alternative to imported European cranes |
| ※ Hoist series rated capacity: 0.8–32 t |
| ※ Maximum hoist lifting height: up to 90 m |
| ※ Stepless trolley speed control (VFD) |
| ※ Rotatable mounting arrangement for the hoist motor |
| ※ Smart drive design for efficient operation |
| ※ Heavy-duty motor, 60% ED rating |
| ※ Heavy-duty galvanized steel wire rope |
| ※ Safety monitoring functions included in the specified series |
| ※ Hoist series rated capacity: 0.8–20 t |
| ※ Maximum hoist lifting height: up to 30 m |
| ※ Robot-welded hoist housing |
| ※ Heavy-duty galvanized steel wire rope |
| ※ M3/M4 hoist mechanism duty class |
| ※ Motor duty rating: 30% ED |
| ※ Imported-brand contactors and improved limit protection |
| ※ Motor energy-efficiency rating: Level 2 or higher, according to the manufacturer’s stated standard |
| Typical Configuration: |

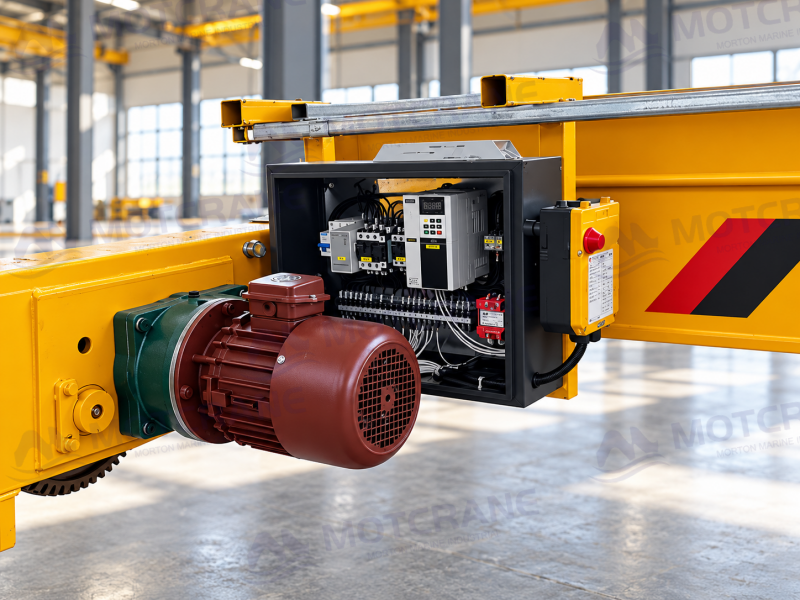

| ※ Geared travel drive with a conical-rotor brake motor
※ Fixed-speed crane travel ※ Soft-start option available ※ Cost-effective solution for general workshop lifting Suitable for routine material handling where variable-speed travel control is not required. |
| Typical Configuration: |

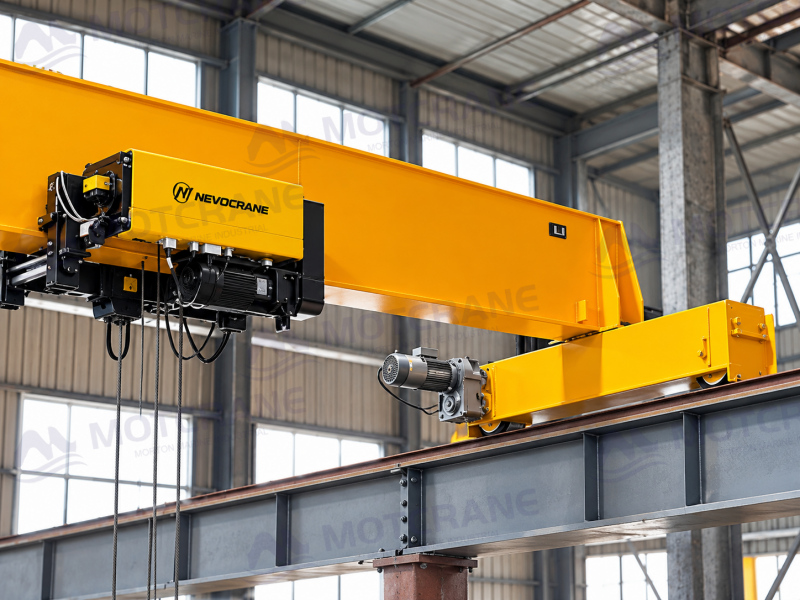

| ※ Compact geared motor with integrated brake
※ GUOMAO drive motor; SEW optional ※ Schneider Electric VFD; Yaskawa optional ※ Adjustable travel speed with controlled acceleration and deceleration Suitable for projects requiring smoother travel control, adjustable speed, or specified drive component brands. |
Related Crane Cases
Related blogs
The following specifications cover MOTCRANE’s three main configurations. Final dimensions and operating parameters depend on the selected equipment and project requirements.
| Item | Specifications |
|---|---|
| Rated Capacity | 1–20 t; commonly requested capacities include 3, 5, and 10 t |
| Crane Span | 7.5–22.5 m; customized spans available |
| Lifting Height | 3–30 m, depending on configuration |
| Crane Duty Class | Standard / Box-Girder: A3; European-Style: A4/A5 |
| Main Girder | Fabricated I-section / Welded box section |
| Hoisting Equipment | CD-Type / European-Style Electric Wire Rope Hoist |
| Hoist Mechanism Duty | M3/M4 or M4/M5, according to hoist selection |
| Crane Travel | Fixed Speed / VFD Control |
| Control Method | Pendant / Wireless Remote Control |
| Protection Class | IP54 / IP55, according to selected components |
| Power Supply | 3-Phase 380 V / 50 Hz or customized |
| Operating Temperature | −20°C to +45°C, subject to component selection |
The specifications above describe available configuration options. Final values and component combinations are confirmed according to the project requirements and technical drawings.
Crane duty classification depends on operating conditions, including working cycles and load spectrum. For general guidance, refer to ISO 4301-1:2016 — Cranes — Classification — Part 1: General.
Some workshops do not have suitable runway beams, crane brackets, or supporting columns. Existing factory buildings may also lack sufficient structural capacity for a new overhead crane installation.
For these projects, MOTCRANE can provide independent steel columns and runway beams as part of a Free Standing Bridge Crane system.
The support arrangement and floor or foundation requirements must be evaluated according to the crane loads and site conditions. A 5-ton free-standing overhead crane project in Spain illustrates this type of installation.

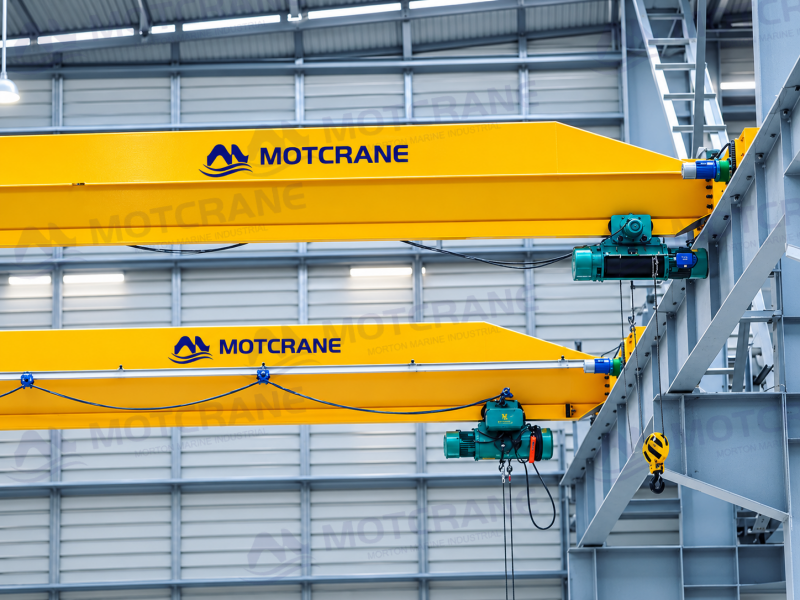

This configuration uses a fabricated I-section main girder and a conventional CD-type wire rope hoist. It is intended for routine lifting applications where a standard hoist arrangement meets the required hook height and operating duty.
Typical Operating Parameters:
Main beam Sectional view:
| Products | USD Price |
| 3 ton single girder overhead crane | 4000~10000 |
| 5 ton single girder overhead crane | 5000~11000 |

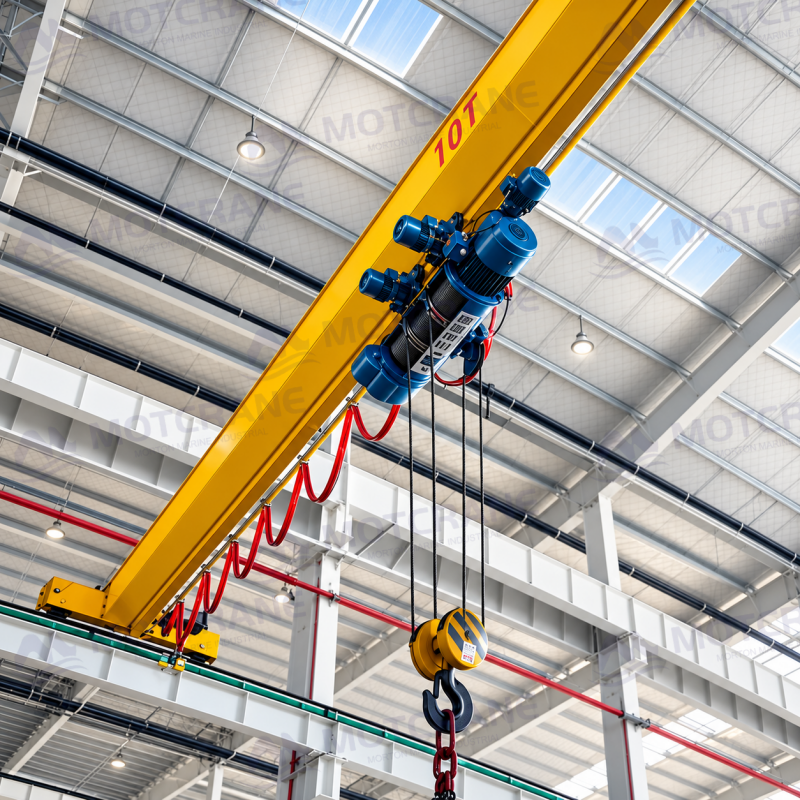

| 10 ton single girder overhead crane | 8000~14000 |
Note：The above prices are reference FOB Shanghai Port prices(1 container), based on the span (7.5m to 22.5m) and lifting height (3m to 30m).

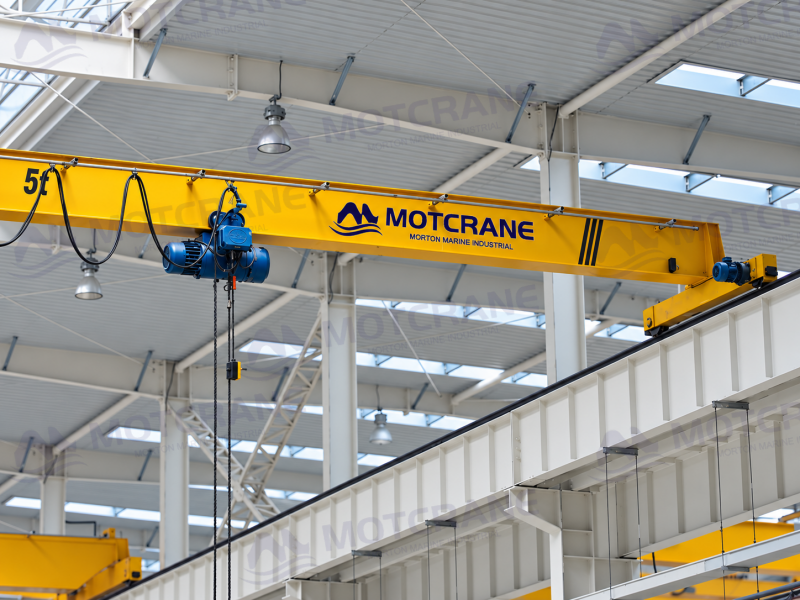

This configuration combines a welded box-section main girder with a conventional CD-type wire rope hoist. It provides a box-girder structural option without requiring a European-style hoisting system.
The hoist trolley track, mounting arrangement, and available hook height are determined by the crane design.
Typical Operating Parameters:
Main beam Sectional view:
| Products | USD Price |
| 3 ton single girder overhead crane | 4500~10500 |
| 5 ton single girder overhead crane | 5500~11500 |
| 10 ton single girder overhead crane | 8500~14500 |
Note：The above prices are reference FOB Shanghai Port prices(1 container), based on the span (7.5m to 22.5m) and lifting height (3m to 30m).

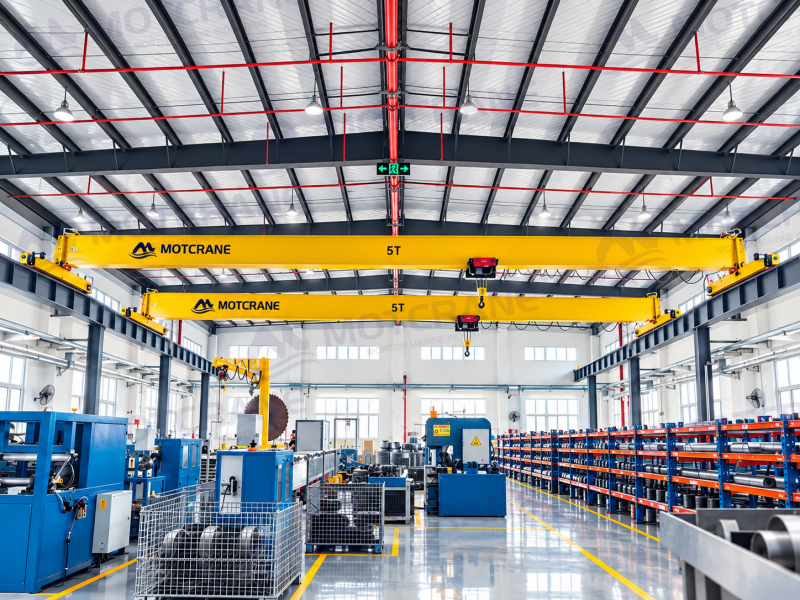

This configuration combines a European-style welded box girder with a European-style electric wire rope hoist. It offers variable-frequency travel control and can be configured for A4 or A5 crane duty according to the application.
For projects requiring an alternative to imported European crane systems, MOTCRANE offers flexible drive and control configurations while maintaining the specified lifting and operating requirements.
Typical Operating Parameters:
The 5-ton European single girder overhead crane project in Mexico demonstrates a configuration using SEW crane travel drives and Schneider Electric frequency converters.
| Products | USD Price |
| 3 ton single girder overhead crane | 12000~18500 |
| 5 ton single girder overhead crane | 13000~19500 |
| 10 ton single girder overhead crane | 15500~23000 |
Note：The above prices are reference FOB Shanghai Port prices(1 container), based on the span (7.5m to 22.5m) and lifting height (6m/9m/12m).
