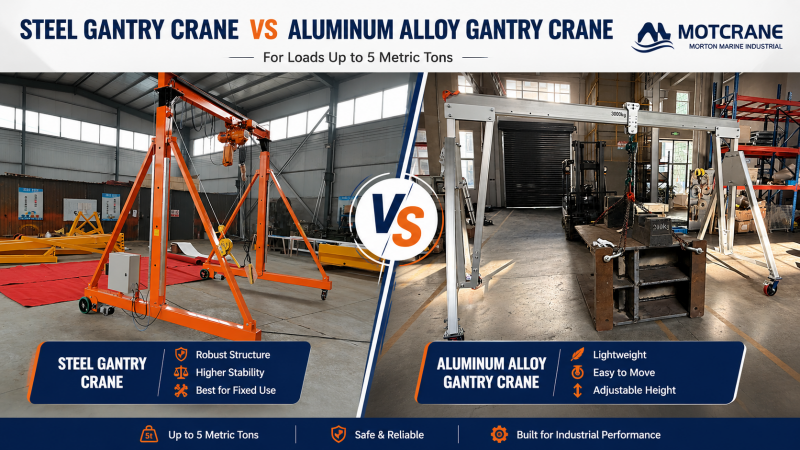

Steel vs Aluminum Gantry Crane Under 5 Tons: Which Should You Choose?

If you need a mobile gantry crane for loads under 5 metric tons, both steel and aluminum designs may appear suitable at first. The difference becomes more important when you consider how often the crane will be moved, whether the height needs regular adjustment, how many people will operate it, and whether the crane will stay in one working area for long-term use.

A steel gantry crane generally has a heavier structure and is often better suited to fixed or frequent lifting work where stability is a priority. An aluminum gantry crane is lighter and easier to relocate, assemble, and adjust, which can be more practical for maintenance work or temporary lifting.

The right choice therefore depends less on the material itself and more on how you plan to use the crane.

Steel vs Aluminum Gantry Crane: Quick Guide

If the lifting task is mainly fixed in one area, used frequently, or requires better structural stability and long-term reliability, a steel gantry crane is usually the better choice.

If your project requires frequent relocation, quick setup, cross-area maintenance, or regular height adjustment, an aluminum alloy gantry crane usually has more advantages.

This steel vs aluminum gantry crane comparison is mainly for small and medium-duty lifting applications under 5 metric tons.

First, Consider How the Crane Will Be Used

Before choosing between steel and aluminum alloy, it is important to understand the lifting routine.

Will the crane be used every day for repeated production tasks, or only occasionally for maintenance and repair? Will it stay in one working area, or does it need to move between multiple workstations?

For fixed operations such as production line support, mold changes, or workpiece transfer, the stability and durability of a steel gantry crane may be more valuable.

For motor repair, equipment assembly and disassembly, temporary lifting, or maintenance work across different areas, the lightweight structure and quick setup of an aluminum alloy gantry crane can be more practical.

The real question is not simply whether the crane can lift 3 or 5 metric tons. The more important question is whether the crane fits your working rhythm, movement frequency, and available manpower.

If the crane will be used frequently, the required duty class should also be confirmed rather than selecting the crane by lifting capacity alone.

How Does Height Adjustment Affect the Choice?

In a steel vs aluminum gantry crane decision, height adjustment and travel method are often more important than material alone. In addition to being lightweight, aluminum alloy gantry cranes usually support manual height adjustment. Depending on the design, the adjustment range can reach about 2 meters, making the crane suitable for different workstations and lifting height requirements.

There are two common height adjustment methods.

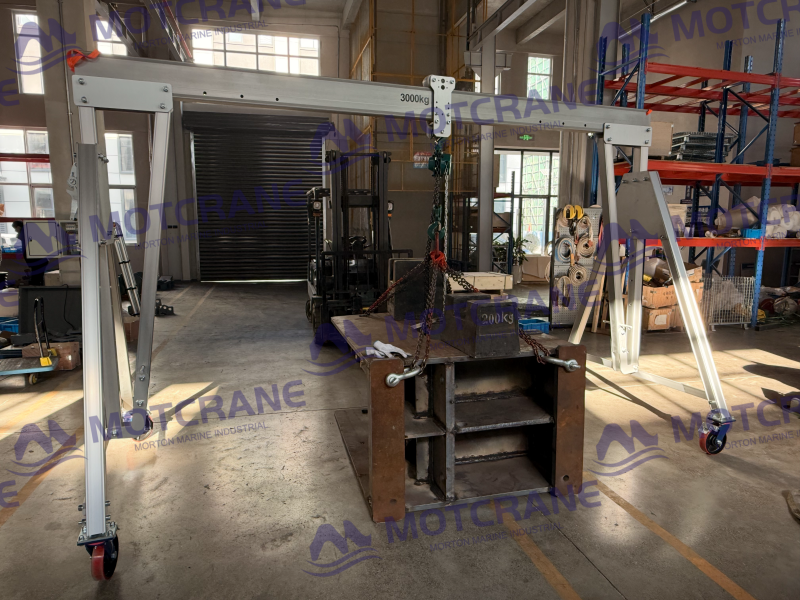

The first method is manual lifting. Operators raise the columns on both sides and then lock them with pins. The columns usually have adjustment holes spaced at 150 mm or 200 mm intervals. Because both sides must be raised evenly, this normally requires two people working together. See our 3-ton adjustable aluminum gantry crane project in Dubai for a practical height-adjustable crane application.

The second method is hand-crank adjustment. Two operators turn the cranks on both sides at the same time to raise or lower the columns, and then secure the structure with pins. This method is easier than direct manual lifting and is more suitable when height adjustment is required more often. If you only need to adjust the crane height occasionally, the direct manual method is usually the simpler option. If the crane height needs to be changed regularly between different work areas or lifting tasks, a hand-crank system can reduce the physical effort required from the operators.

Steel gantry cranes can also be designed with adjustable height. A manual crank mechanism is not complicated, but because the steel structure is heavier, operation usually requires more effort than with an aluminum alloy crane.

The more complex option is hydraulic cylinder lifting. Hydraulic lifting can make height adjustment easier, but it adds hydraulic cylinders, a hydraulic system, synchronization requirements, and additional safety considerations. For a steel gantry crane with hydraulic lifting, the structure, travel method, and control system usually need to be considered as a complete design. Hydraulic adjustment is generally worth considering only when the required crane size, adjustment frequency, or operating process justifies the additional system complexity.

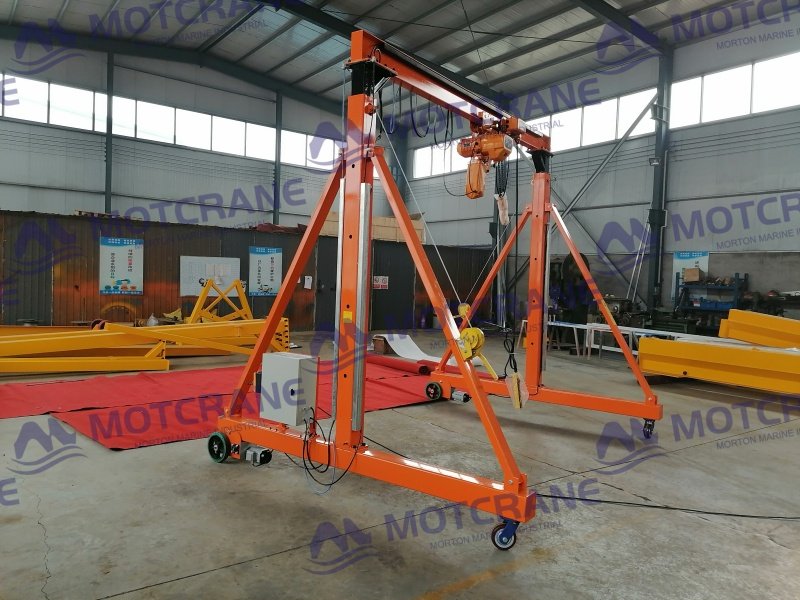

How Does the Travel Method Affect the Choice?

Travel method is another important difference when comparing steel and aluminum gantry cranes.

Because an aluminum gantry crane has a lower dead weight, manual movement is usually easier, especially when the crane needs to be relocated regularly between work areas.

A steel gantry crane can also be moved manually, but the total crane weight, caster resistance, floor condition, and lifted load should be considered. In practice, hand-pushed travel is more common for capacities up to around 3 metric tons. For heavier cranes or frequent loaded travel, motorized travel is often more practical.

If you expect workers to move the crane under load, confirm this requirement before purchasing. The crane, casters, travel mechanism, and supporting structure should all be designed for loaded travel rather than assuming that any mobile gantry crane can be pushed safely with a suspended load.

Site Conditions Also Affect the Choice

If the floor is level, the operating area is fixed, and the lifting frequency is high, a steel gantry crane is often more suitable for stable long-term use.

If the crane needs to be moved frequently, access routes are limited, or only a small team is available on site, the lightweight and portable design of an aluminum alloy gantry crane becomes more useful.

The working environment should also be considered. In damp, salt-fog, or corrosive environments, steel gantry cranes usually require painting, galvanizing, or other surface treatment to improve corrosion resistance. Aluminum alloy materials generally offer better corrosion resistance as part of the material itself.

Consider Future Requirements

Future changes should also be reviewed before making a decision.

If the current lifting requirement is 1 or 2 metric tons but may increase to nearly 5 metric tons, or if the crane may take on more fixed production tasks later, a steel gantry crane may be the safer long-term choice.

If the future requirement is more likely to involve moving between different areas, temporary lifting tasks, or frequent height adjustment, an aluminum alloy gantry crane is usually more flexible.

Frequently Asked Questions

Can aluminum alloy gantry cranes handle loads up to 5 metric tons?

Some aluminum alloy gantry cranes can be designed for higher capacities, depending on the structure and working conditions. However, they are more commonly used for light and medium-duty lifting. If the load is close to 5 metric tons, span, lifting height, frequency of use, travel method, and safety margin should be carefully reviewed.

Can steel gantry cranes be pushed by hand?

Yes, but the important question is whether the crane can actually be pushed safely when fully loaded. In general, manual pushing may be considered for capacities up to 3 metric tons, depending on site conditions. For capacities above 3 metric tons, motorized travel is usually recommended.

Which crane is better for a small maintenance team?

If two or three people need to move, assemble, adjust, and store the crane, an aluminum alloy gantry crane is usually more suitable. If the crane will stay in one area for long-term use, a steel gantry crane can also be a practical choice.

Summary

For gantry crane projects under 5 metric tons, the choice between steel and aluminum should be based on how the crane will actually be used.

If your crane will remain in one working area, be used frequently, or need a heavier and more robust structure, a steel gantry crane may be more suitable.If you need easier relocation, quicker assembly, or regular height adjustment, an aluminum gantry crane is often the more practical option.

If you are not sure which configuration fits your project, send MOTCRANE the lifting capacity, span, required lifting height, movement frequency, height-adjustment requirements, floor conditions, and site photos for an engineering review.
