Underslung cranes, as its name suggests, features a suspended main girder design,a type of light and small lifting equipment. This underslung overhead crane is typically used in conjunction with electric hoists or chain hoists and is widely employed in lifting operations in workshops, warehouses, and other similar settings.This type of crane can be installed simply by being fixed to the existing roof structure without the need for additional runway support columns. However, it is necessary for the roof structure to have sufficient load-bearing capacity to support the total weight generated by the crane’s own weight and the operational load.

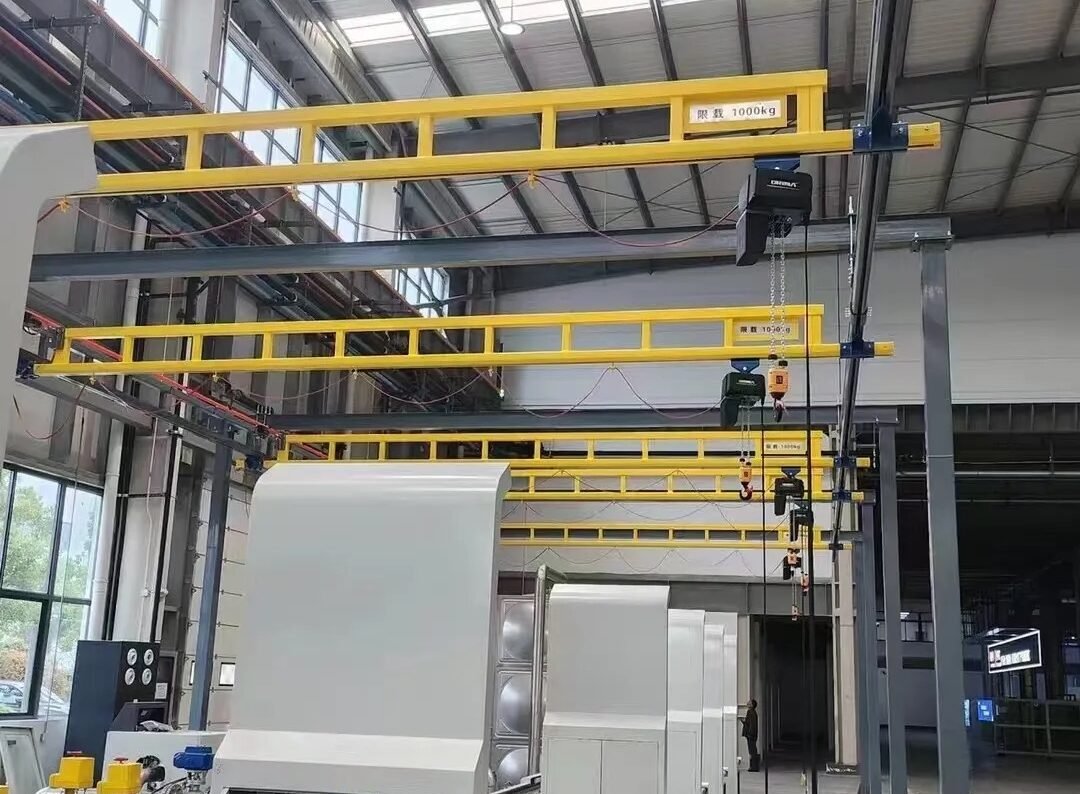

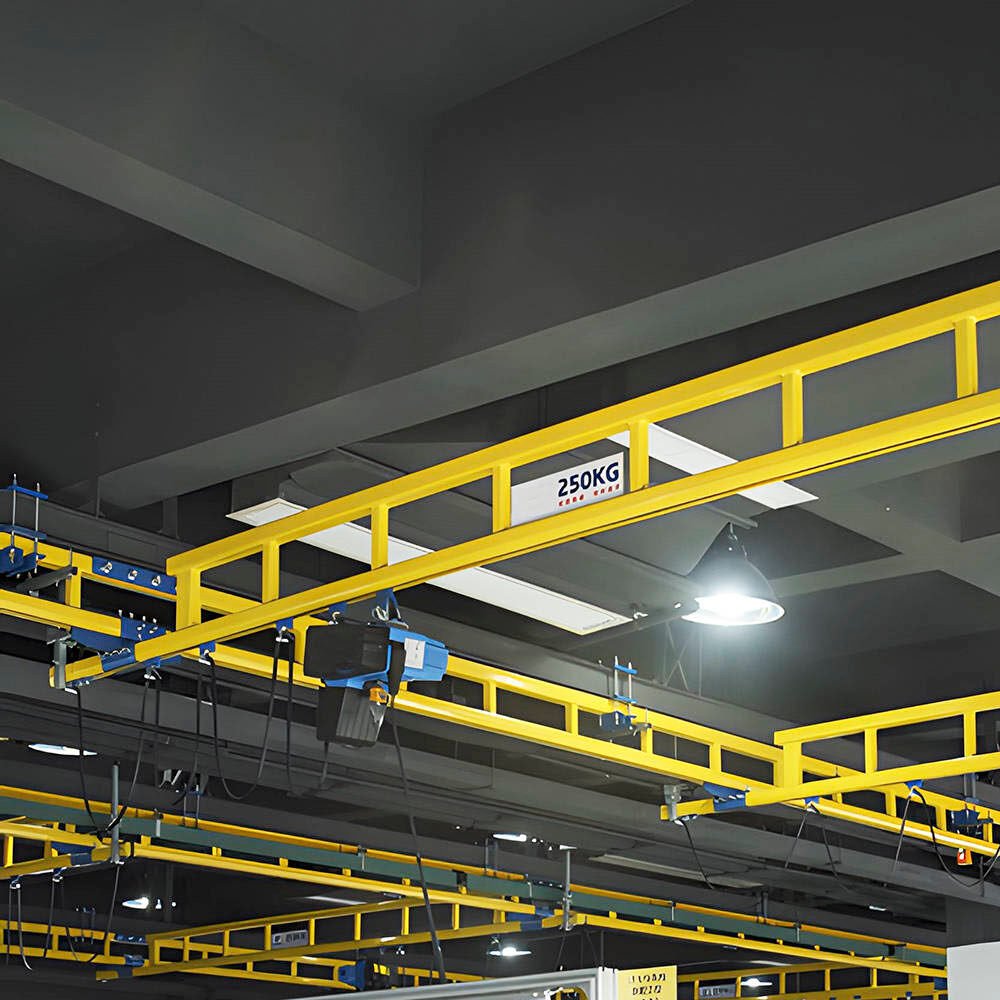

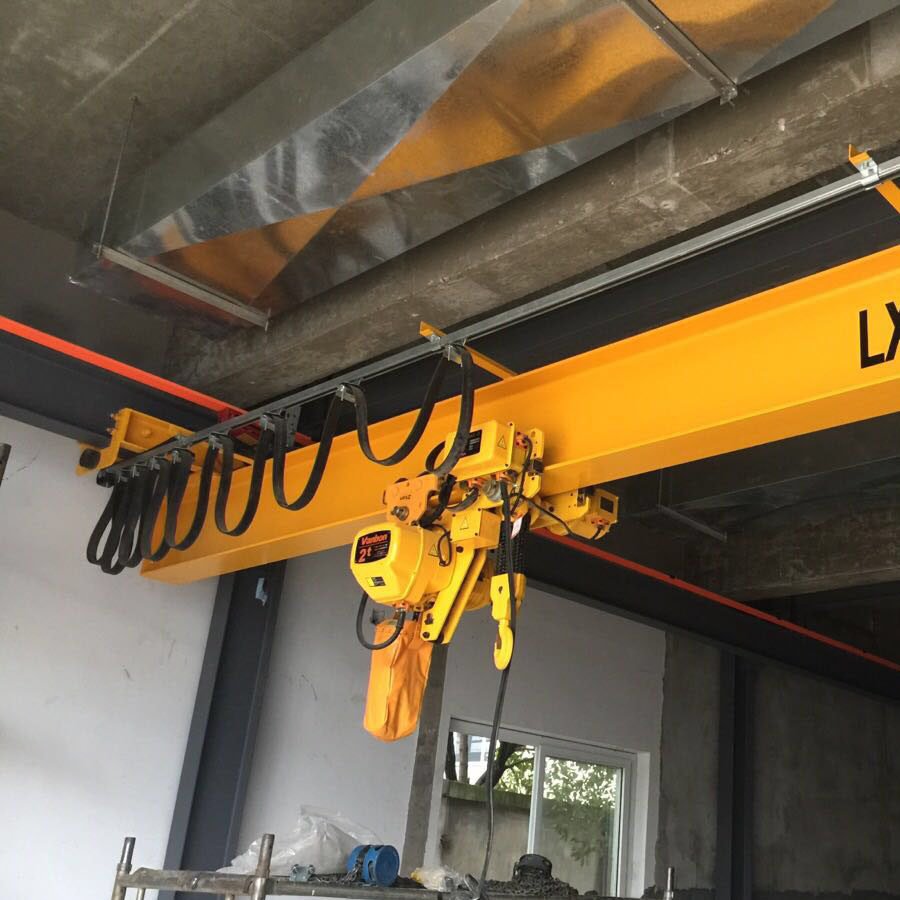

| ♦ Load Capacity： | 0.5t~10t |
| ♦ Crane Span： | 3m~22.5m |
| ♦ Lifting Height： | 3m/6m/9m/10m/12m/20m/30m |
| ♦ Working Class： | A3、A4、A5 |
| ♦ Control mode： | Wireless remote control & Ground control |
| ♦ Protection class： | IP54/IP55 |
| ♦ Power Source： | 3P 380V 50HZ or others |
| ♦ Working temperature： | -20℃ to 45℃ |
| Suspended Beam |
| Material：Steel |
| Rigid track: Straight type |
| Lifting Type：Chain Hoist |
| Load Capacity：≤2t |
| Manual / Remote Control |
| Working Class: A3 |
| ISO Standard |
| Suspended Beam |
| Material：Steel |
| Rigid track: Straight type |
| Lifting Type：Chain Hoist |
| Load Capacity：2t~10t |
| Manual / Remote Control |
| Working Class: A3 |
| ISO Standard |
| Suspended Beam |
| Material：Steel |
| Rigid track: Straight type |
| Lifting Type：Electric Hoist |
| Load Capacity：2t~10t |
| Manual / Remote Control |
| Working Class: A5 |
| ISO/FEM/DIN Standard |
| ※ SWL(t)：0.8t-32ton |
| ※ HOL(m)Max.：90m |
| ※ Stepless control trolley(VDF control); |
| ※ Rotation mounting design for lifting motor; |
| ※ Smart driving,higher efficiency; |
| ※ Heavy duty motor, 60%ED rating; |
| ※ Heavy duty galvanized wire rope; |
| ※ Standard features include safety monitoring; |
| ※ SWL(t)：0.2t-50ton |
| ※ HOL(m)Max.：3m、6m、9m |
| ※ Move Left & Right：Electrical、Fixed; |
| ※ Go Up & Down：Electrical、Manual； |
| ※ Dual braking system; |
| ※ Reverse Protection Device; |
| ※ 24V/36V transformer; |
| Common types: |
| ♦ Conical asynchronous motor
♦ Soft start motor
♦ 3-in-1 motor （Can replace European brands） |
| Common types: |
| ♦ “3-in-1” motor
Motor, reducer & brake are combined into 1 drive device with the advantages of easy installation, high transmission efficiency and low noise. |
Rated Crane Cases
Related blogs
Underhung cranes, also referred to as under-running or underslung overhead cranes, represent an optimal solution for factories aiming to eliminate floor obstructions by utilizing the existing building structure without requiring additional support columns. These cranes are generally lighter than top-running systems (such as single girder overhead cranes) and are specifically designed for light-duty or small-capacity applications. Our underhung crane series can handle loads ranging from 0.5 tons to 10 tons, with work duty ratings of A3, A4, and A5.
Underslung Cranes With Electric Hoist, model LX, mainly consists of: main beam (European style), end beam, electric hoist (European style), electrical control system.
♦ Standard Capacity：500KG/1t/2t/3t/5t/10t
♦ Crane Span(c/c)：7.5m~22.5m
♦ Lifting height：6m/9m/12m/18m/24m/30m
♦ Working class：A4/A5
♦ Crane control mode：Floor control & Remote control
♦ Lifting speed：5/0.8m/min
♦ Hoist(Trolley) Traveling speed：0-20m/min
♦ Crane Traveling speed：0-20m/min

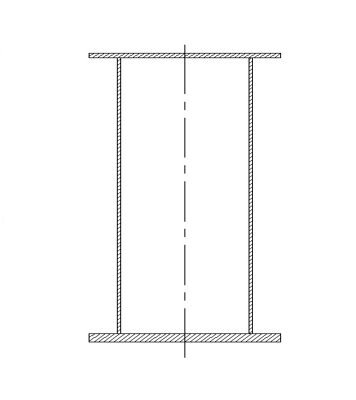

♦ Main beam Sectional view：square box-type structure
| Products | USD Price |
| 500KG Underslung Cranes | 1000~7000 |
| 1 ton Underslung Cranes | 2000~8000 |
| 2 ton Underslung Cranes | 3000~9000 |
| 3 ton Underslung Cranes | 4000~10000 |
| 5 ton Underslung Cranes | 5000~11000 |
| 10 ton Underslung Cranes | 8000~14000 |
Note：The above prices are reference FOB Shanghai Port prices, based on the span (3m to 22.5m) and lifting height (3m to 30m).
Underslung Cranes With Chain Hoist, model LXH, mainly consists of: main beam (European style), end beam, chain hoist, electrical control system.
♦ Standard Capacity：500KG/1t/2t/3t/5t/10t
♦ Crane Span(c/c)：7.5m~22.5m
♦ Lifting height：6m/9m/12m/18m/24m/30m
♦ Working class：A3
♦ Crane control mode：Floor control & Remote control
♦ Lifting speed：8m/min
♦ Hoist(Trolley) Traveling speed：20m/min
♦ Crane Traveling speed：20m/min
♦ Main beam Sectional view：square box-type structure
| Products | USD Price |
| 500KG Underslung Cranes | 8000~6000 |
| 1 ton Underslung Cranes | 1000~7000 |
| 2 ton Underslung Cranes | 2000~8000 |
| 3 ton Underslung Cranes | 3000~9000 |
| 5 ton Underslung Cranes | 4000~10000 |
| 10 ton Underslung Cranes | 7000~13000 |
Note：The above prices are reference FOB Shanghai Port prices, based on the span (3m to 22.5m) and lifting height (3m to 30m).
