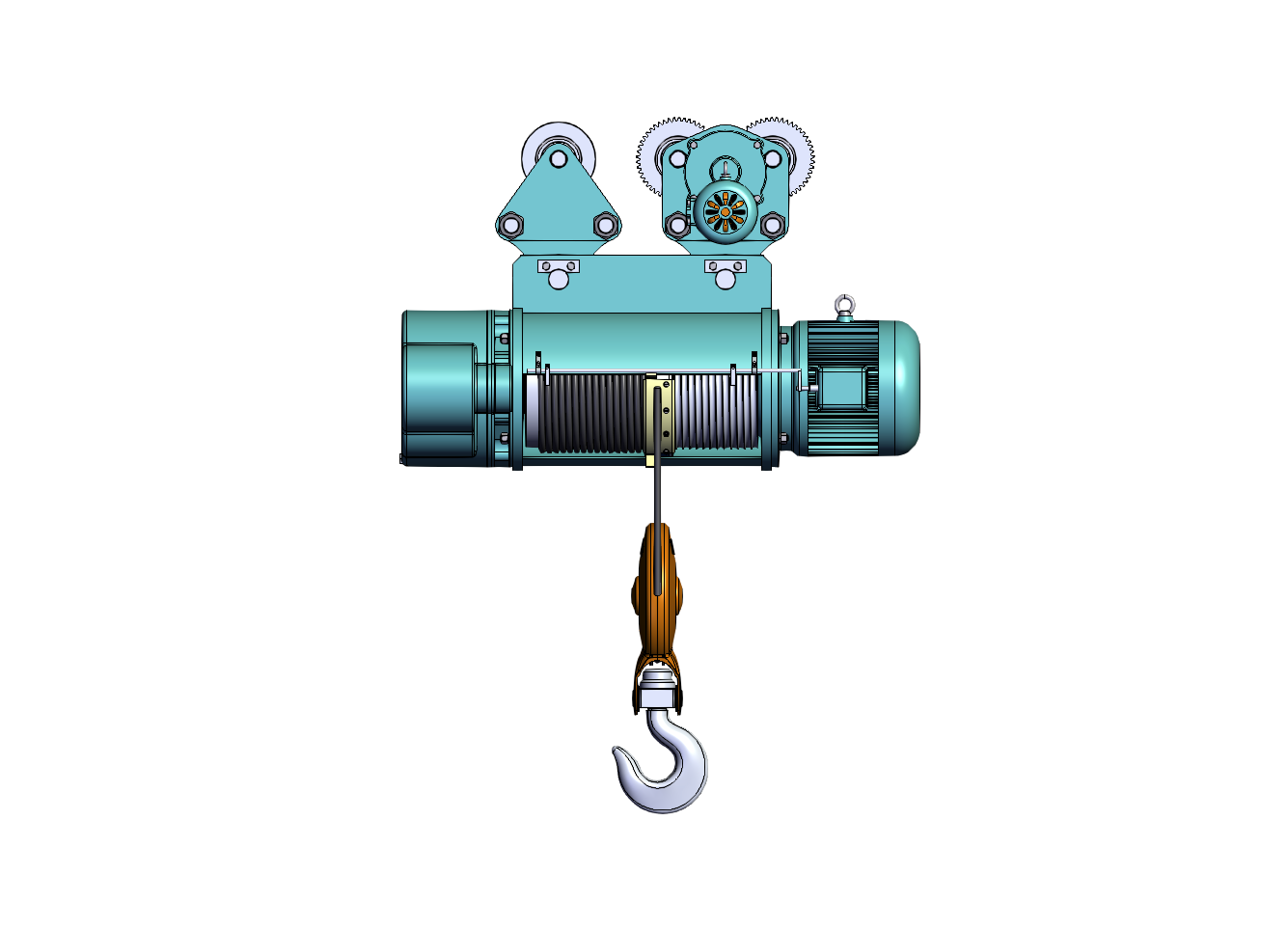

Electric wire rope hoists are a commonly used lifting device and are usually installed on single girder overhead travelling cranes, gantry cranes and jib cranes. Its working class is M3 or M4.
| ♦ Load Capacity： | 1t~20t |
| ♦ Lifting Height： | 3m~30m |
| ♦ Working Class： | M3/M4 |
| ♦ Control mode： | Wireless remote control |
| ♦ Protection class： | IP54/IP55 |
| ♦ Power Source： | 3P 380V 50HZ or others |
| ♦ Working temperature： | -20℃ to 45℃ |

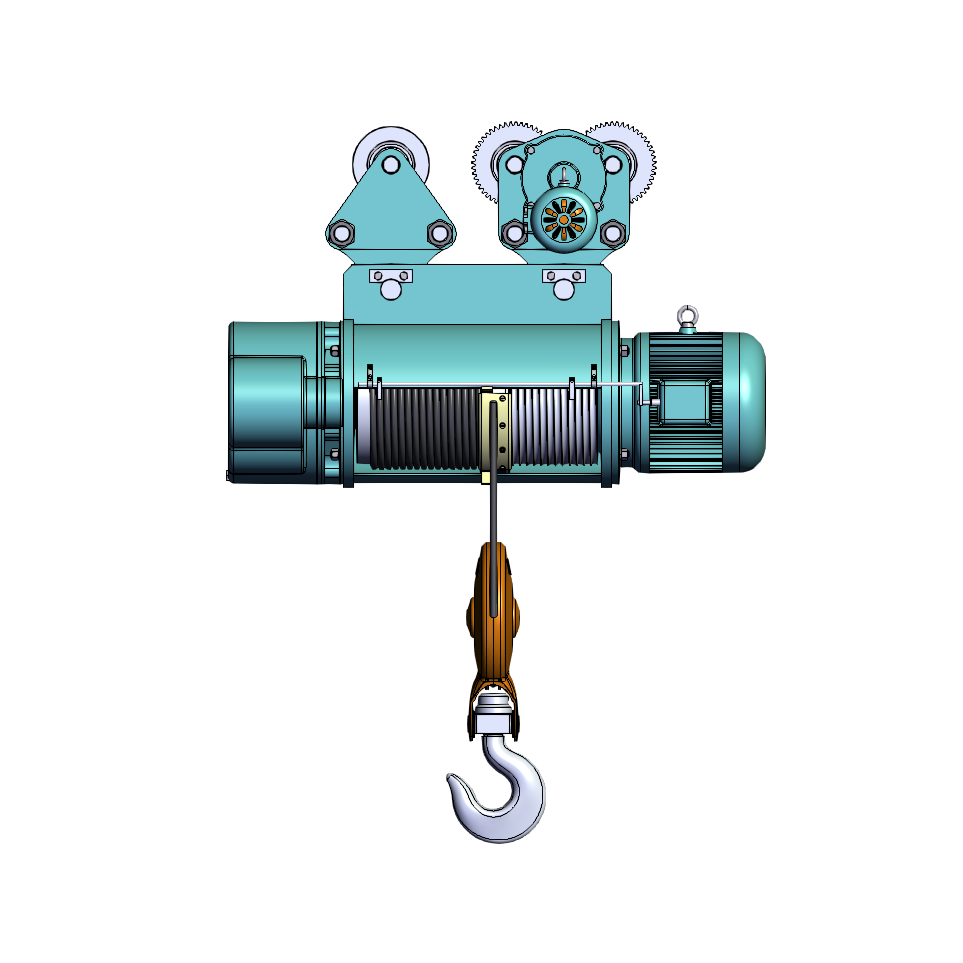

| Single Girder Hoist |
| Lifting speed(m/min)：3.5、5、6、7、8 |
| Travelling speed(m/min)：20 |
| Working Class：M3/M4 |
| ISO Standard |
| Suspended beneath the main beam |

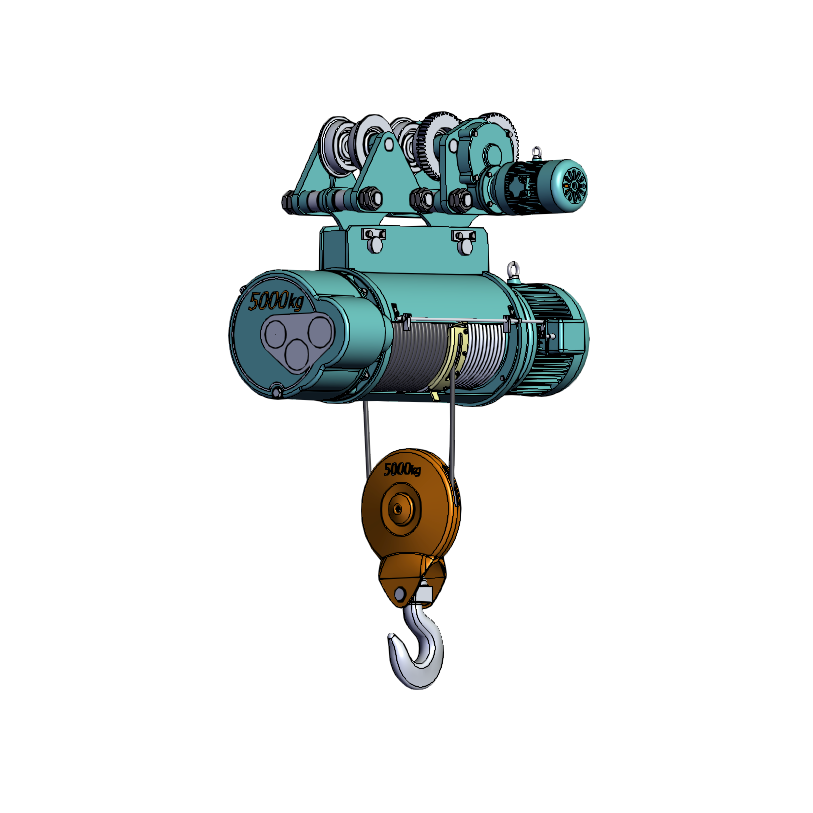

| Double Girder Hoist |
| Lifting speed(m/min)：3.5、5、6、7、8 |
| Travelling speed(m/min)：20 |
| Working Class：M3/M4 |
| ISO Standard |
| Spanning between two main beams |

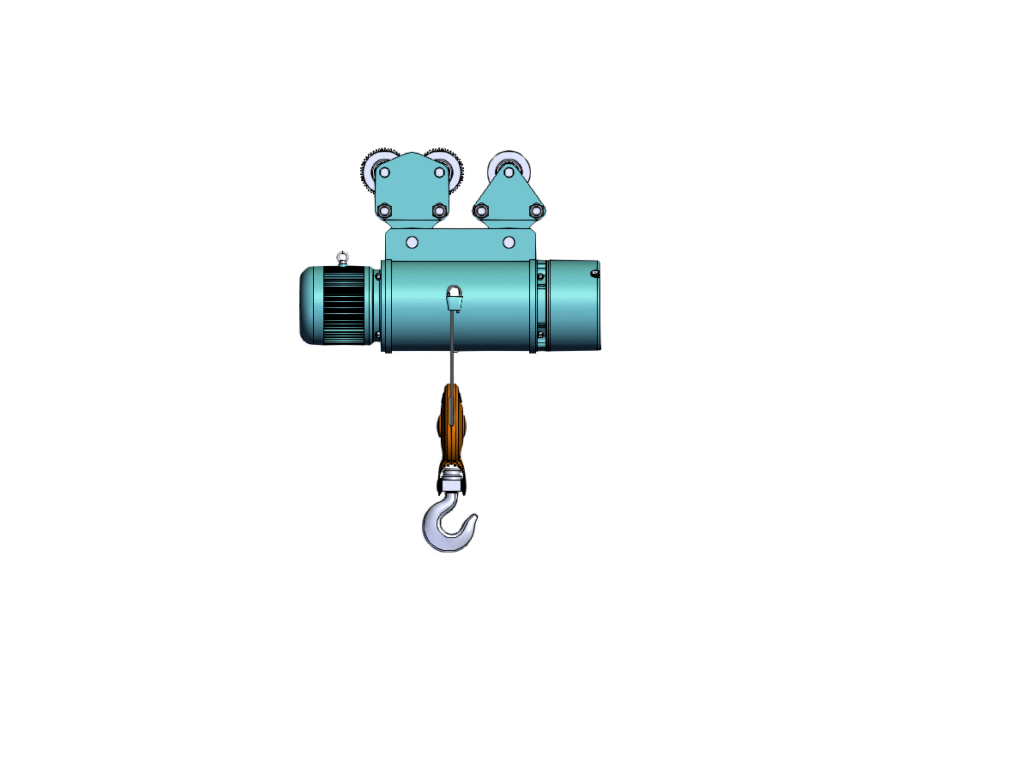

| Single Girder Hoist |
| Lifting speed(m/min)：3.5、5、6、7、8 |
| Travelling speed(m/min)：20 |
| Working Class：M3/M4 |
| ISO Standard |
| Suspended beneath the main beam |
| ♦ SWL(t)：1t-20ton |
| ♦ HOL(m)Max.：30m |
| ♦ Travelling hoist; |
| ♦ M3/M4 working level; |
| ♦ Environmentally friendly paint; |
| ♦ Motor load duration 30%. |
| ♦ Overall energy efficiency grade ≥ level 2; |
| ♦ SWL(t)：1t-20ton |
| ♦ HOL(m)Max.：30m |
| ♦ Fixed hoist equipped with a movable base |
| ♦ Installing a base (trolley frame) modifies the single girder hoist into a double girder hoist. |
♦ ISO standard
♦ Traditional design
♦ Large volume
♦ Easy to maintain
♦ FEM/DIN/ISO standard
♦ Space saving
♦ Inverter control
♦ Smooth & silent running
♦ Saving power, low carbon, maintenance free

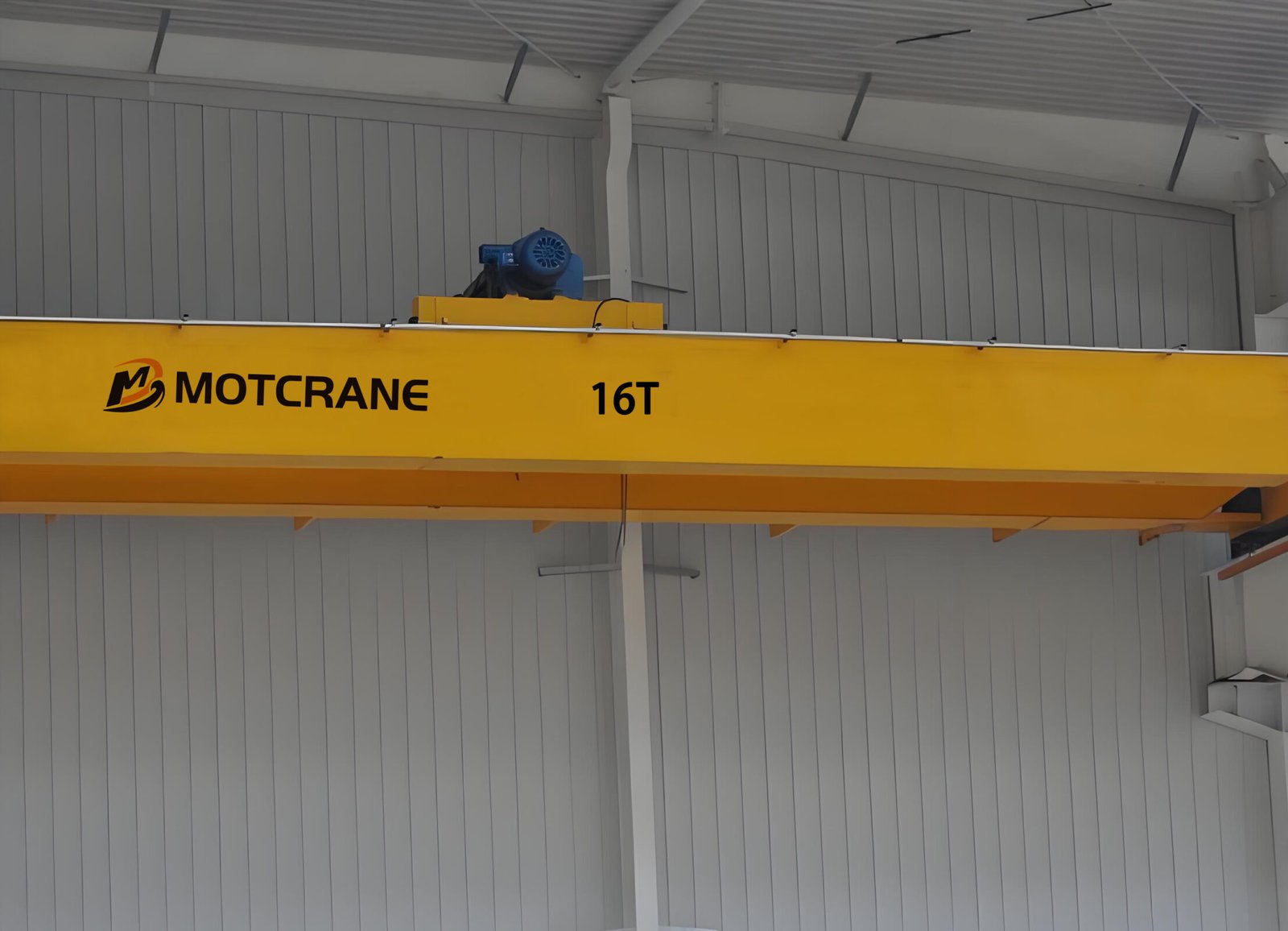

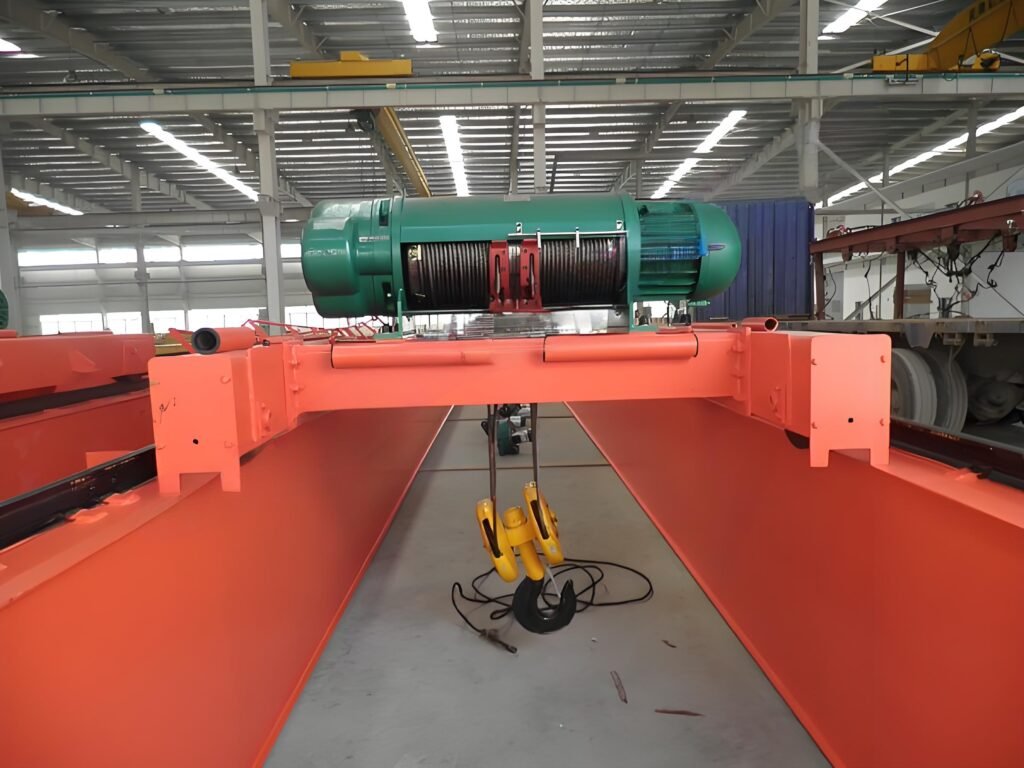

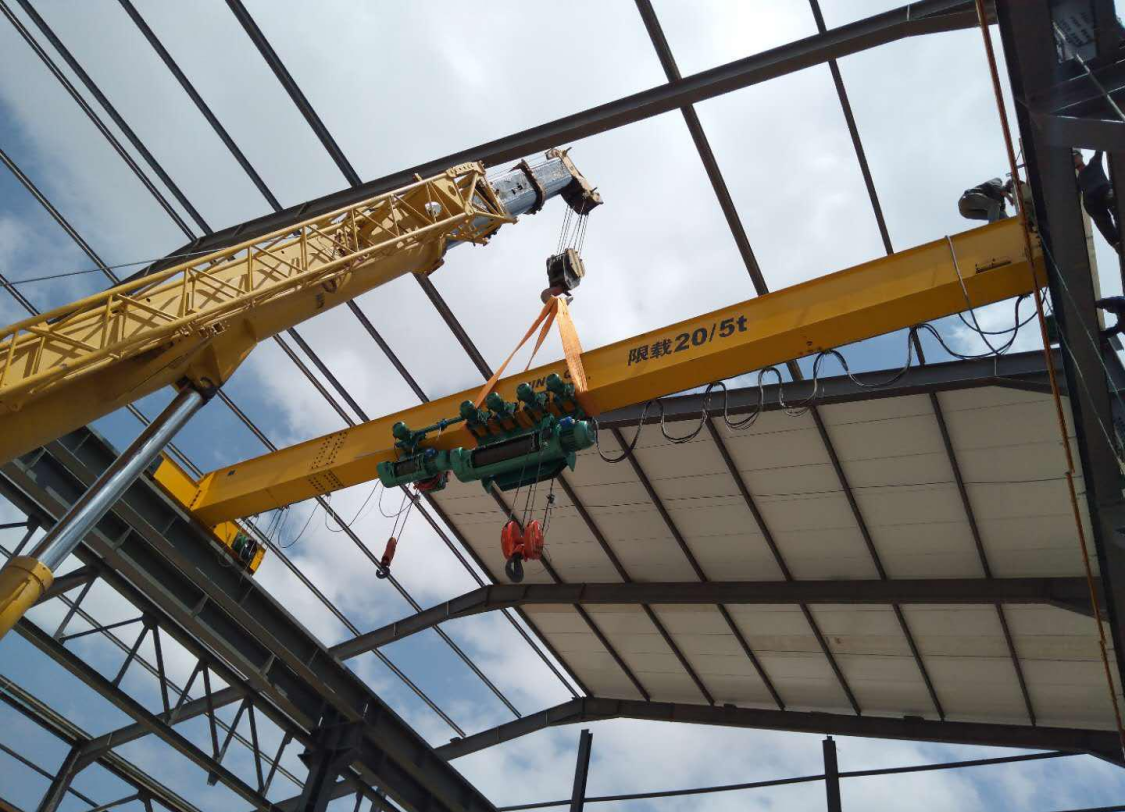

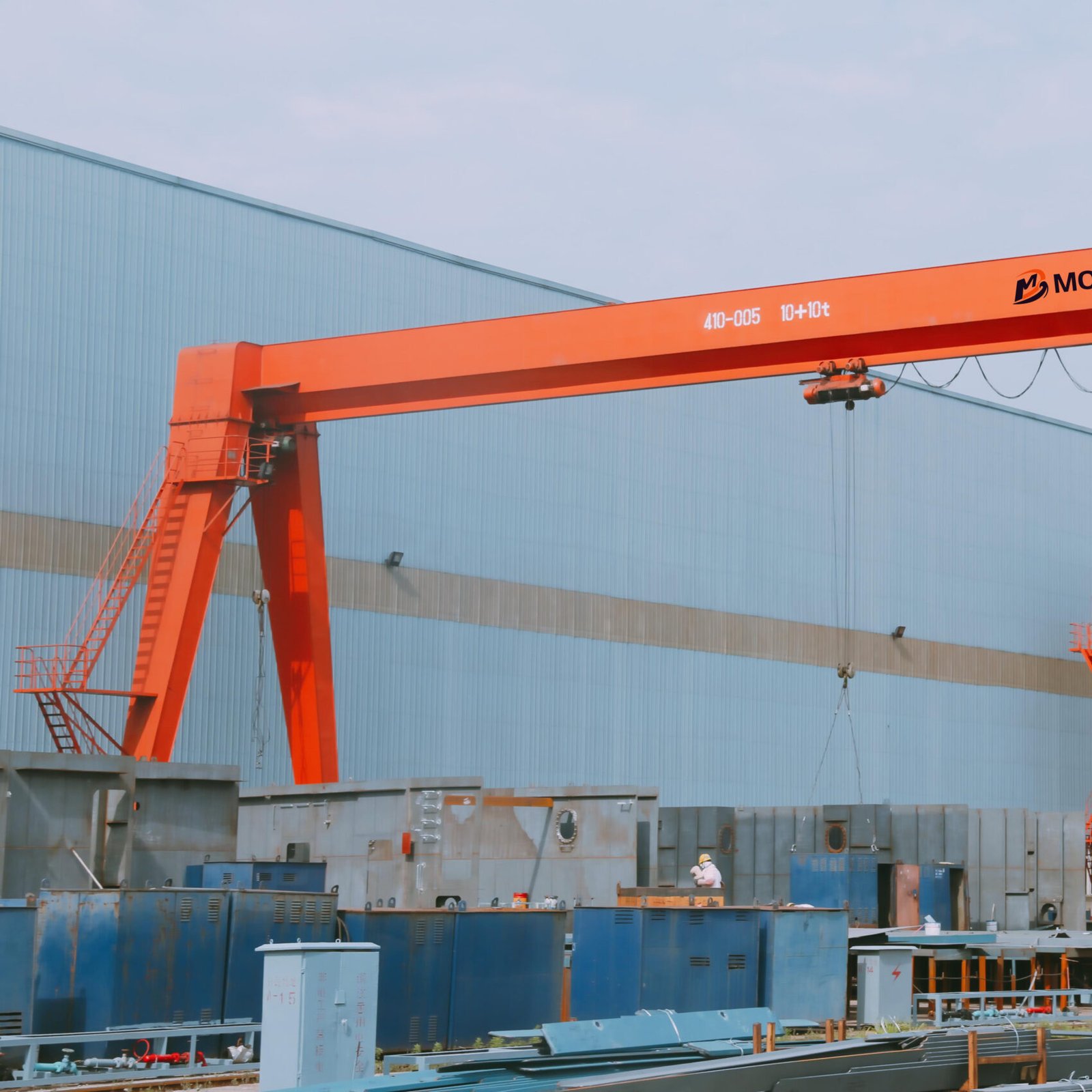

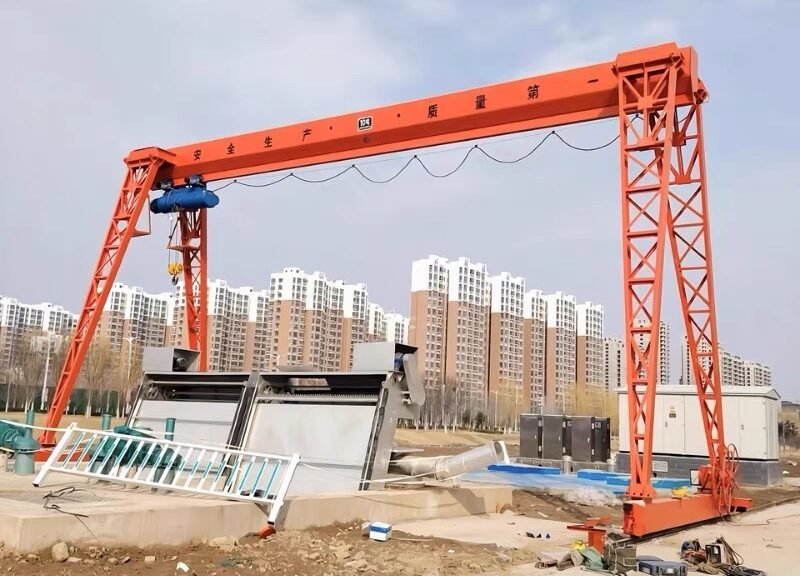

Rated Crane Cases
Related blogs

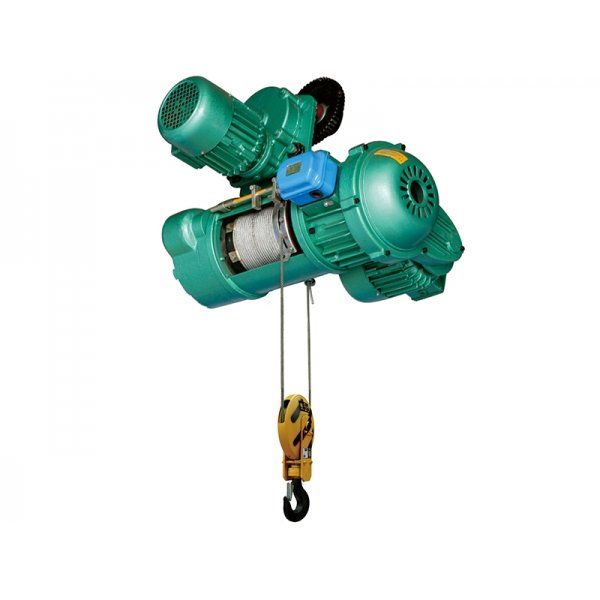

There are two typical types of electric wire rope hoists: CD type & MD .
CD hoists: single-speed hoist, typically 8m/min, can be used for everyday loading and unloading.
MD hoists: double-speed hoist, typically 8/0.8m/min, can be used for precision loading and unloading, machine tool installation and maintenance requirements.
♦ The life test of the electric hoist has surpassed the standard requirement of 800 hours, achieving over 1,000 hours.
♦ The working level has been enhanced from M3 to M4.
♦ Compared to the CD1/MD1 series, the energy efficiency grade has been significantly improved, reaching Grade 2, with some models attaining Grade 1.
♦ Environmentally friendly paint has been comprehensively applied.
♦ The brake ring of the product utilizes asbestos-free materials, thereby better meeting environmental protection and safety standards.
♦ Lifting Capacity (tons): 0.5, 1, 2, 3, 5, 8, 10, 12.5, 16, 20
♦ Lifting Height (meters): 6, 9, 12, 18, 24, 30
♦ Working class：M3/M4
♦ Crane control mode：Remote control
♦ Lifting speed： 8/0.8m/min(dual-speed) & 8m/min(single speed)
♦ Hoist(Trolley) Traveling speed：20m/min
♦ Suitable for single girder overhead travelling crane, single girder gantry crane and jib crane.
