Electric wire rope hoists are a commonly used lifting device and are usually installed on single girder overhead travelling cranes, козловые краны и консольные краны. Its working class is M3 or M4.
| ♦ Грузоподъемность： | 1t~20t |
| ♦ Высота подъема： | 3м~30м |
| ♦ Рабочий класс： | M3/M4 |
| ♦ Режим управления： | Беспроводной пульт дистанционного управления |
| ♦ Класс защиты： | IP54/IP55 |
| ♦ Источник питания： | 3P 380V 50HZ или другие |
| ♦ Рабочая температура： | от -20℃ до 45℃ |
| Однобалочный подъемник |
| Lifting speed(м/мин)：3.5、5、6、7、8 |
| Travelling speed(m/min)：20 |
| Working Class：M3/M4 |
| Стандарт ISO |
| Suspended beneath the main beam |
| Double Girder Hoist |
| Lifting speed(м/мин)：3.5、5、6、7、8 |
| Travelling speed(m/min)：20 |
| Working Class：M3/M4 |
| Стандарт ISO |
| Spanning between two main beams |
| Однобалочный подъемник |
| Lifting speed(м/мин)：3.5、5、6、7、8 |
| Travelling speed(m/min)：20 |
| Working Class：M3/M4 |
| Стандарт ISO |
| Suspended beneath the main beam |
| ♦ SWL(t)：1t-20ton |
| ♦ HOL(m)Max.：30m |
| ♦ Travelling hoist; |
| ♦ M3/M4 working level; |
| ♦ Environmentally friendly paint; |
| ♦ Motor load duration 30%. |
| ♦ Overall energy efficiency grade ≥ level 2; |
| ♦ SWL(t)：1t-20ton |
| ♦ HOL(m)Max.：30m |
| ♦ Fixed hoist equipped with a movable base |
| ♦ Installing a base (trolley frame) modifies the single girder hoist into a double girder hoist. |
♦ ISO standard
♦ Traditional design
♦ Large volume
♦ Easy to maintain
♦ FEM/DIN/ISO standard
♦ Space saving
♦ Inverter control
♦ Smooth & silent running
♦ Saving power, low carbon, maintenance free
Номинальные корпуса кранов
Похожие блоги
There are two typical types of electric wire rope hoists: CD type & MD .
CD hoists: single-speed hoist, typically 8m/min, can be used for everyday loading and unloading.
MD hoists: double-speed hoist, typically 8/0.8m/min, can be used for precision loading and unloading, machine tool installation and maintenance requirements.
♦ The life test of the electric hoist has surpassed the standard requirement of 800 hours, achieving over 1,000 hours.
♦ The working level has been enhanced from M3 to M4.
♦ Compared to the CD1/MD1 series, the energy efficiency grade has been significantly improved, reaching Grade 2, with some models attaining Grade 1.
♦ Environmentally friendly paint has been comprehensively applied.
♦ The brake ring of the product utilizes asbestos-free materials, thereby better meeting environmental protection and safety standards.
♦ Lifting Capacity (tons): 0.5, 1, 2, 3, 5, 8, 10, 12.5, 16, 20
♦ Lifting Height (meters): 6, 9, 12, 18, 24, 30
♦ Рабочий класс：M3/M4
♦ Режим управления краном：Пульт дистанционного управления
♦ Скорость подъема： 8/0.8m/min(dual-speed) & 8m/min(single speed)
♦ Подъемник (тележка) Скорость движения：20 м/мин

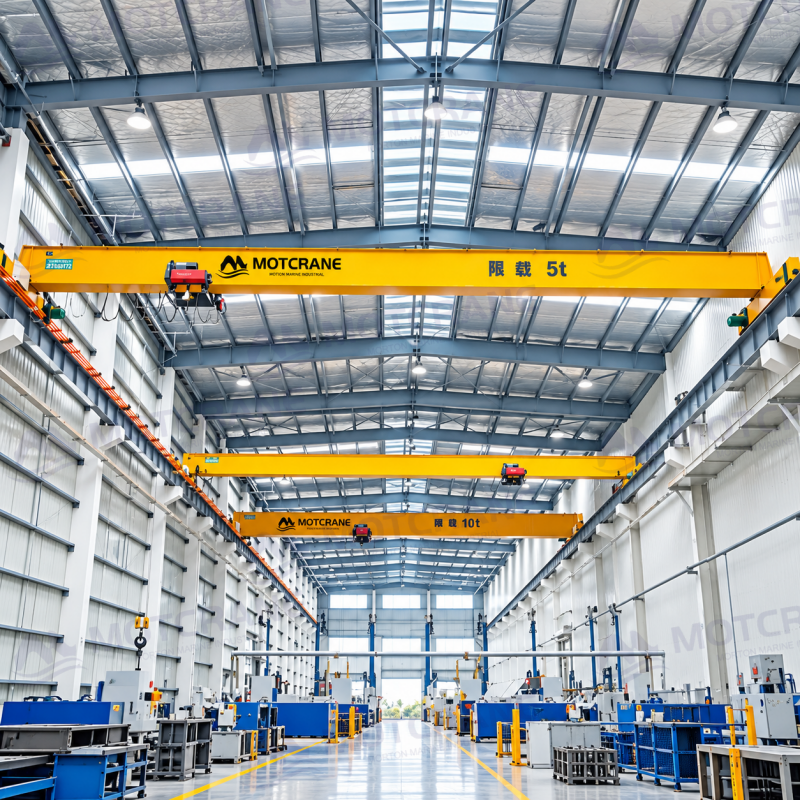

♦ Подходит для Однобалочный мостовой кран, однобалочный козловой кран и консольный кран.
