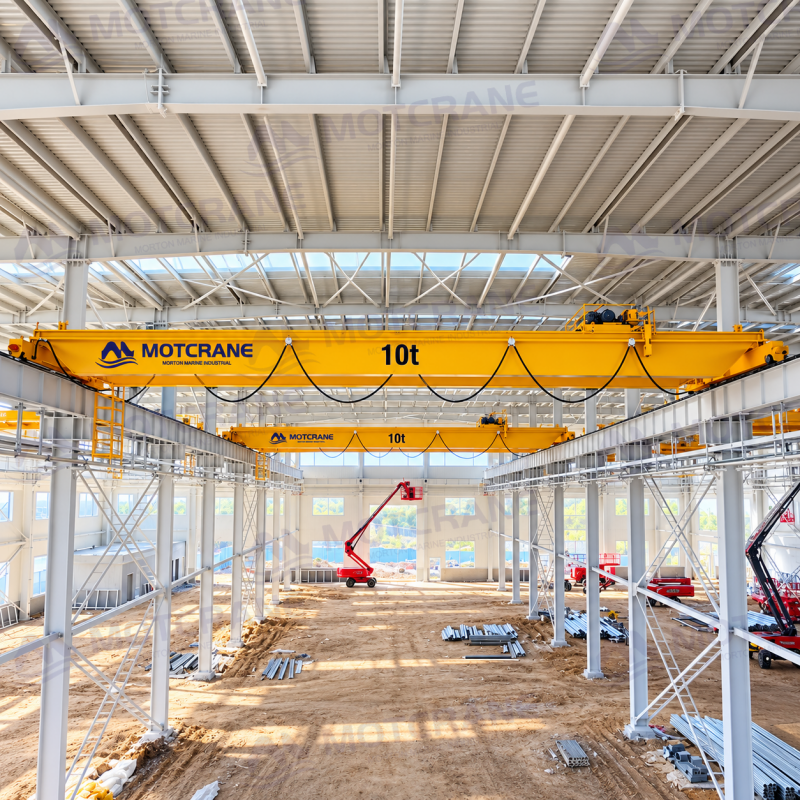

Grúa birraíl EOT is one of the configurations of the double Girder overhead crane,it’s a lifting equipment that is horizontally suspended above workshops, warehouses, and material yards for material lifting.Compared with grúa monorraíl EOT, it has a larger load-bearing capacity and is more suitable for smelting workshops and intelligent control workshops.It is mainly consists of 5 parts: main beam(2 pcs,European style), end beam, electric hoist, electric control system and running rail.
| ♦ Capacidad de carga： | 5t、10t、16t、20t、32t、50t、75t、100t…. |
| ♦ Envergadura de la grúa： | 7.5m~31.5m |
| ♦ Altura de elevación： | 3m~50m |
| ♦ Clase obrera： | A4、A5、A6、A7、A8 |
| ♦ Modo de control： | Wireless remote control & Cab control |
| ♦ Protection class： | IP54/IP55/IP65/IP67 |
| ♦ Fuente de alimentación： | 3P 380V 50HZ u otros |
| ♦ Working temperature： | -40℃ to 45℃ |
| Haz europeo |
| Polipasto eléctrico estándar |
| NO Control VFD |
| Working Class: A3、A4 |
| Norma ISO |
| Polipasto eléctrico y motor：Marca china |
| Altura libre baja |
| Haz europeo |
| European Electric Hoist |
| Control VFD |
| Working Class：A4、A5 |
| FEM/DIN/ISO Standard |
| Polipasto eléctrico y motor：WORLD & SEW |
| Altura libre baja |
| Haz europeo |
| Polipasto eléctrico europeo (sin mantenimiento) |
| Control VFD |
| Working Class：A5~A8 |
| FEM/DIN/ISO Standard |
| Electric Trolley & Motor：Chinese/European |
| Altura libre baja |
| ♦ SWL(t)：0,8t-80toneladas |
| ♦ HOL(m)Max.：90m |
| ♦ Carro de control continuo (control VDF); |
| ♦ Diseño de montaje giratorio para motor de elevación; |
| ♦ Conducción inteligente, mayor eficiencia; |
| ♦ Heavy duty motor, 60%ED rating; |
| ♦ Cable de acero galvanizado de alta resistencia; |
| ♦ Entre sus características de serie se incluye la supervisión de la seguridad; |
| ♦ SWL(t)：5t-500ton |
| ♦ HOL(m)Max.：160m |
| ♦ Altura baja, peso ligero, ahorro de costes de construcción; |
| ♦ Procesamiento de alta resistencia; |
| ♦ Conducción inteligente, mayor eficiencia; |
| ♦ Sin mantenimiento; |
| ♦ Inching/Microvelocidad/Antibalanceo, etc; |
| ♦ HMI y sistema de motorización de seguridad, etc; |
| Tipos comunes: |
| ♦ Motor asíncrono cónico
♦ Motor de arranque suave
♦ Motor 3 en 1 （Puede sustituir a las marcas europeas） |
| Tipos comunes: |
| ♦ "Motor "3 en 1
El motor, el reductor y el freno se combinan en un solo dispositivo de accionamiento con las ventajas de una fácil instalación, alta eficiencia de transmisión y bajo nivel de ruido. |
Cajas de grúa
Blogs relacionados
Double Girder EOT crane is one of the configurations of the double Girder overhead crane, is widely used in heavy lifting scenarios (typically with a load capacity of over 20 tons). Although its cost is higher than that of single girder EOT cranes, many customers still choose to purchase double girder EOT cranes with a rated load of 5 tons.
Double Girder EOT crane are mainly divided into two types: LH type and QD type, corresponding to different hoisting mechanism configurations respectively. Among them, the LH type is equipped with a electric hoist type lifting mechanism (suitable for M3 to M5 working levels), while the QD type adopts a winch/trolley lifting mechanism (suitable for M5 and above working levels).
♦ LH：Double-girder electric hoist overhead crane, equipped with CD type wire rope hoist (M3)
♦ LHX：Double-girder electric hoist EOT crane with European design, equipped with European-style hoists (M4/M5)
♦ QD：General double-girder overhead crane (Chinese hook type M5/M6)
♦ QDX：Double-girder EOT crane (European hook type M5/M6)
♦ QDY：Metallurgical Casting overhead Crane (Lifting molten metal M6/M7)
♦ QZ：Grab overhead crane (Bulk Cargo handling)
♦ QC：Electromagnetic double-type overhead crane (for lifting steel pipes and steel plates)
♦ QE：Double-girder overhead crane (two trolleys)
♦ Standard Capacity：5t~32t
♦ Crane Span(c/c)：7.5m~31.5m
♦ Altura de elevación：6m/9m/12m/18m/24m/30m…
♦ Clase trabajadora：A4/A5
♦ Modo de control de la grúa：Floor control / Remote control / Cabin room
♦ Velocidad de elevación: 5/0.8m/min (dual-speed)
♦ Polipasto (carro) Velocidad de desplazamiento：0~20m/min.
♦ Grúa Velocidad de desplazamiento：0~20m/min、0~30m/min
| Productos | Precio en USD |
| 5 ton double girder EOT crane | 14500~25500 |
| 10 ton double girder EOT crane | 15500~26500 |
| 20 ton double girder EOT crane | 25500~39500 |
| 32 ton double girder EOT crane | 35500~54500 |
| 50 ton double girder EOT crane | 55000~67500 |
| 80 ton double girder EOT crane | 88000~145000 |
Nota：Los precios anteriores son de referencia. FOB Shanghai Port prices, based on the span (7.5m to 31.5m) and lifting height (6m to 18m).
| ♦ Optimal girder： | At least 30% steel saving, smaller wheel load, building cost saving |
| ♦ Integrated trolley： | Low headroom and compact designing, trolley height more than 50% lower |
| ♦ Flexible bridge end carriage： | Self-adjustment wheel block, wheel groove keeps full touching with top of rail |
| ♦ Flexible trolley end carriage： | Self-adjustment wheel block, wheel groove keeps full touching with top of rail |
| ♦ 3-points supporting frame for trolley： | Self-adjustment inner of motor, gear, drum, stress release, more stable |
| ♦ Side mounted driving： | Self-adjustment inner of motor, gear, higher transmission efficiency, lower power |
| ♦ Super drum： | Drum/Rope raito more than 40, longer rope life time |
| ♦ Free-angle pulley： | Decline load up to 10 degree, more safety for side loading |
| ♦ 2-speed lifting： | Fast and slow speed for lifting control, smoothly hook up/down |
| ♦ Stepless bridge travelling： | Smoothly starting, moving, and stop, less of hook swaying |
| ♦ Stepless trolley traversing： | Smoothly starting, moving, and stop, less of hook swaying |
| ♦ Safety monitoring system： | Monitoring SWP, starts, overloads, overheating, etc. |
| ♦ Over load protection (Mechanical)： | Electical sensor will stop lifting while the load is up to defined capacity, accuracy ±2% |
| ♦ Over heating protection (lifting motor)： | Over heating sensor will stop lifting motor running while the temperature up to defined data. |
| ♦ Over heating protection (bridge motor)： | Over heating sensor will stop bridge motor running while the temperature up to defined data. |
| ♦ Over heating protecton (trolley motor)： | Over heating sensor will stop trolley motor running while the temperature up to defined data. |
| ♦ Bridge limit switch (slow-down&stop)： | 2-step cross-stick limit switch will slow down and stop bridge speed in defined area |
| ♦ Trolley limit switch (slow-down&stop)： | 2-step cross-stick limit switch will slow down and stop trolley speed in defined area |
| ♦ 4-points programming limits： | Rotation limit switch can be programmed lower, slow-down, up, top, with phase sequence control |
| ♦ Rope slacking protection： | Circle rope guider holding the rope in certain presure, there will be no loose even hook stay on ground |
| ♦ Declining lifting protection： | Lifting stop in case declining degree over designing |
| ♦ Alarm horn and flash lights： | Alarming mode can be programmed, starts alarming and/or movement alarming |
| ♦ Safety slatch for hook： | Safety slatch is a certain locker for hook loading |
| ♦ Insulated Protection (Motor)： | IP55 |
| ♦ Insulated Protection (Cubicle)： | IP55 |
| ♦ Insulated Protection (Pendant)： | IP65 |
| ♦ Bridge gearmotor locker： | The connecting rope will hold the dropping bridge motor while the bolts broken |
| ♦ Trolley gearmotor locker： | The connecting rope will hold the dropping trolley motor while the bolts broken |
| ♦ Double girder trolley locker： | The trolley locker will support dropping hoist, while double girder trolley be derailment |
| ♦ Low voltage protection： | The crane will be stopped while the power voltage is 10% less than rated voltage |
| ♦ Over current protection (lifting)： | The lifting will be stopped while lifting current is 2 times higher than norminal current |
| ♦ Over current protection (trolley)： | The trolley will be stopped while trolley current is 2 times higher than norminal current |
| ♦ Over current protection (bridge)： | The bridge will be stopped while bridge current is 2 times higher than norminal current |
| ♦ Trolley buffer： | Ruber buffer slow-down and saftlystop the movement of trolley |
| ♦ Bridge buffer： | Ruber buffer slow-down and saftlystop the movement of bridge |
| ♦ Anti-collision for neighbor cranes： | Infra wireless limit switch will slow-down and stop the closeing neighbor cranes |
